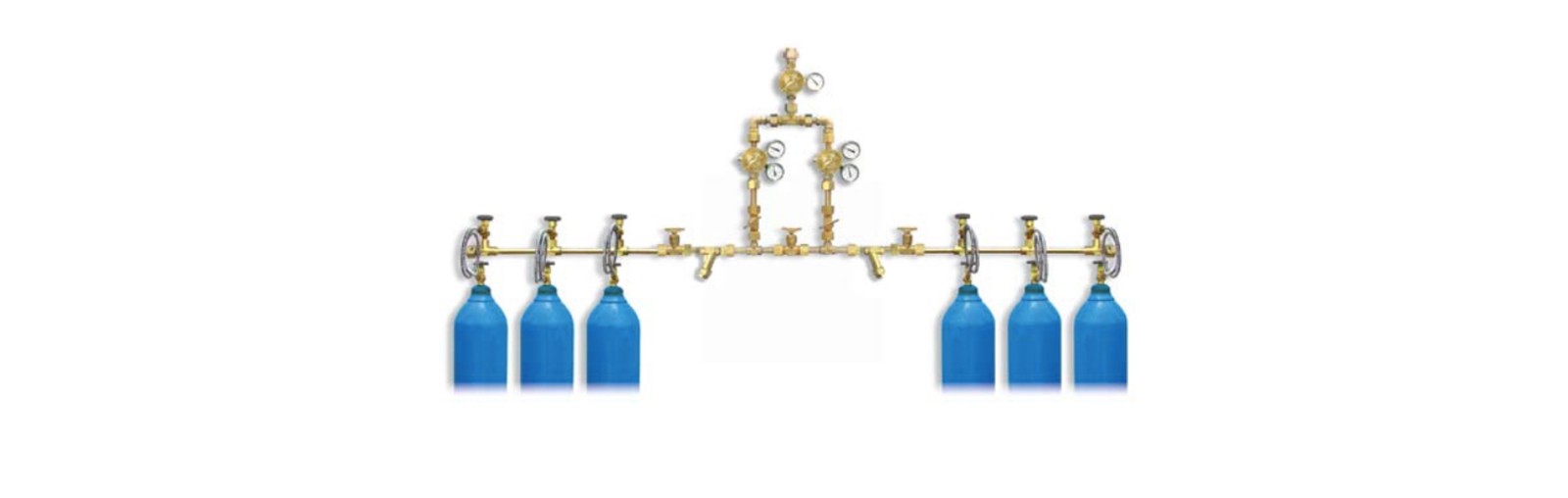

ACMD automatic manifold system is design to provide continuous gas supply without any manual operation. It is mainly for small and medium-sized gas supply depot. Several cylinders centrally connect with manifold pipe, after depressurization and stabilizing and delivery medical gas to terminal use.

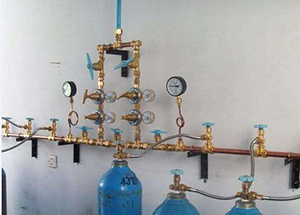

Equipped with primary and secondary pressure reducer
Primary pressure reducer: Pilot-operated type, stable flow, durable
Secondary pressure reducer: Balance type big flow reducer, stable flow, durable. One standby, safer for gas supply
Equipped with safety valve, sensitive response, large discharge flow, provide safety protection
Stainless steel diaphragm pressure reducer to ensure a steady flow
System for fuel gas come with an anti-explosive device
External filter facilitates replacement of filtration elements
Equipped with safety valve, sensitive response, large discharge flow, provide safety protection
Piping joints with silver brazing, maximum leak prevention
Compact structure, rational layout
Unique switch valve design, make sure that the main gas supply and the standby during gas switch, gas steady
In accordance with the CGA 4.1 and ISO 15001 standard degreasing cleaning, oxygen is used
100% gas pressure tested, safe and reliable

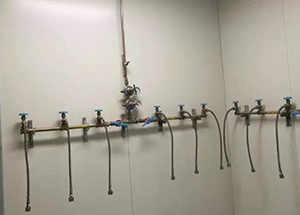

Use stainless-steel high pressure pigtails, use copper pigtails for oxygen.
Equipped with gas heater for CO2
Open-design manifold for future expansion needs

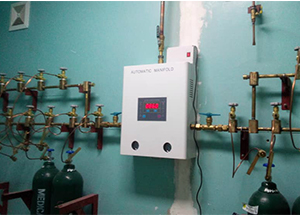

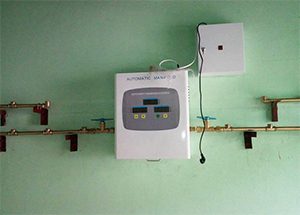

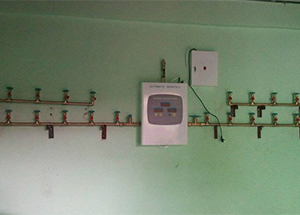

Wall mounted or floor mount installation
Thread connection outlet, Convenient installation
The 3-way ball valve，easy maintenance

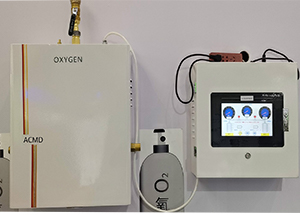

0 ~ 10 V or 4 ~ 20 mA signal output
Monitor output and input pressure alarm
Input Pressure: 0.4-15.0MPa (150Bar)
Output Pressure: 0.4MPa (4Bar) ~ 0.8MPa (8Bar)
Normal Output Flow Rate: >100Nm3/hour
Input Interface Thread: M33*2 ( Customized )
Electricity: ~220V/60Hz, 250mA
Safety Valve Opening Pressure: 1.8Mpa
Piping joints: Silver brazing
Pig tail: Copper or Stainless steel
(Width*Height*Depth), Packed in wooden case
12*12：3500mm*175mm*175mm, G.W 98KG(For Pipe)
10*10: 1470mm*270mm*300mm, G.W 75KG(For Pipe)
8 * 8: 1250mm*230mm*200mm, G.W 54KG(For Pipe)
Customized for : Psi, kPa, Bar, MPa, inHg, and mmHg
Oxygen, AIR, CO2, N2 etc.
A5312X-5*5-1
1=Manifold system layout (1:Standard Layout, 2:’’L’’Shape Layout,3:’’U’’Shape Layout, 4:Crossover Layout, 5:Staggered Layout)
2=Cylinder valve spacing (1: 5’’-127mm, 2:10’’-254mm, 3:13’’-330mm,4:18’’-457mm)
X=Gas service(X: Oxygen, A: Air4, IA: Air7, C: Carbon dioxide, N20: Nitrous oxide, N2: Nitrogen)
5=Number of cylinders(Left-hand)
5=Number of cylinders(Right-hand)
1=Type of mounted(1: Wall mount, :2: Floor mount)
( Example: A100D12X-5*5-1 :Indicates a 5*5 cylinder digital automatic manifold system)
Distance between each cylinder is 10’’ on standard horizontal layout
