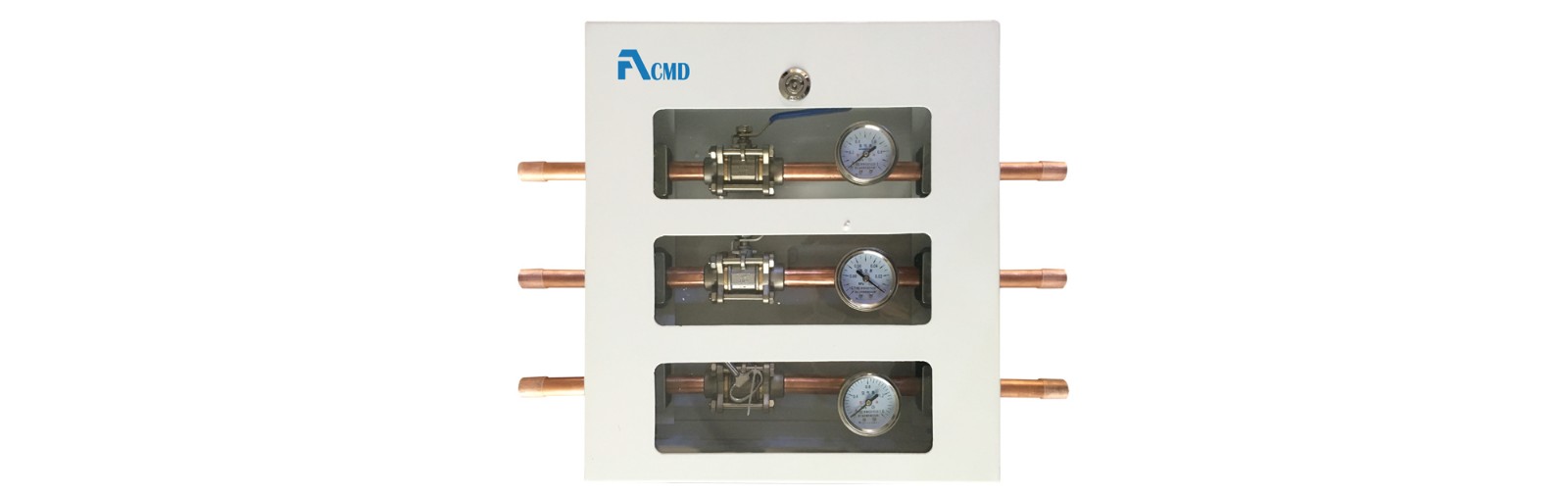

Surface Mounted Zone Valve With Box

Surface Mounted Zone Valve With Box

The front assembly is an easily removable cover window with pull ring. The window conceal the piping and valves inside the box and labeled “Caution - Medical Gas Shut-Off Valves - Close Only in Emergency” Placement of the valves within the zone valve box shall be such that the removable window cannot be replaced when any valve is closed.

Clear viewing space shall be provided in the window to display the gas service, the area controlled by the valve, and the pressure gauges.

  • Specifications
  • Gallery
  • Features
  • Related Products
  • Video

Specifications

Technical Details

  • Sized up to 6 kinds of gases (Oxygen, Vacuum, Air, Nitrous Oxide, Carbon Dioxide, Evacuation)

  • Tube size: Customized (1/2’’-3’’)

  • Provided with 60 diameter gauges

  • Removable window with pull ring

  • Color-coded labels for identity gas services

  • Stainless-steel 3 pieces ball valves

  • Silver brazed connection

  • Easy access pull out window

  • Unit of gauge available in PSI, MPA

Installation methods

  • Modular structure, adjustable to different wall

  • The valve box frame constructed of aluminum surface flat without indentations, to facilitate cleaning

  • Type k copper pipe extensions that are cleaned for medical gas service shall be fitted into each side of the valve.

  • Dual gauge ports shall be drilled into the pipe extensions for the purpose of inserting gauges.

Physical

  • Packing Size: 570mm*430mm*150mm (3 Gas) ( 1pcs to 1 wooden case )

  • Weight:G.W: 15KG; N.W: 12KG

Material

  • Remove window: Plexiglass (allow monitoring of the valve and gauge)

  • Pipe: Copper & Stainless steel

  • Mounting box: 18 gauge galvanized steel sheet with white baked paint

  • Valve: Stainless-steel 3 pieces ball valves

Ordering Information

  • AZB-X-X-XXXX

  • X=Numbers of Valves (1-6)

  • X=Option(G: with Gaugue, A: with Alarm, None: without )

  • XXXX=Tubing Dimension(05:1/2’’, 07:3/4’’, 10:1’’, 15:1-1/2’’, 20:2’’, 25:2-1/2’’, 30:3’’)

  • ( Example: If you would like to order a three-valve zone box with gauge:1/2’’, 3/4’’ and 1’’, then the model number should be AZB-3G-050710 )

Gallery

Valve 1.jpg
Valve 2.jpg

Features

Aesthetic Design

  • Full port design, removable cover window with pull ring

  • Color-coded labels for identity gas services

  • The valve box frame constructed of aluminum surface flat without indentations, to facilitate cleaning

Valve Design

  • Stainless-steel 3 pieces ball valves

  • Blow-out proof stem

  • The valve for pressure rating of 600 psig

High Quality

  • Modular structure, adjustable to different wall

  • 100% air tightness test and be hydrostatically tested

  • Clear gas service & area controlled viewing

  • Units of gauge available in PSI, MPA

Quality Warranty

  • 3 years’ warranty

  • Complies with latest edition of NFPA99

  • 100% air tightness test and hydrostatically tested
