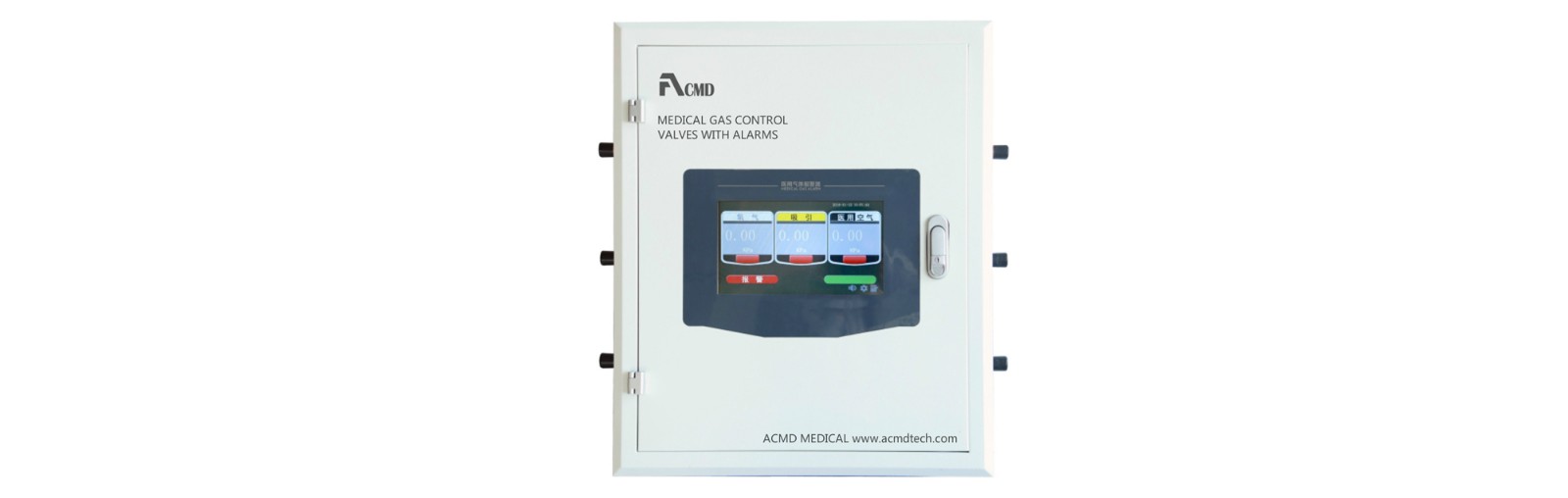

This Product Combine the Zone valve with box and Area gas alarm system into one box, saved much space for installation and more convenient for accessing if any emergency.
It’s equipped with 10.1-inch LCD screen real-time display is monitored gas pressure, can set the alarm point based on the parameters of the use. To achieve overrun alarm, to ensure hospital gas pressure normal.
Sized up to 8 kinds of gases (Oxygen, Vacuum, Air, Nitrous Oxide, Carbon Dioxide, Evacuation)
Tube size: Customized (1/2’’-3’’)
Color-coded labels for identity gas services
Silver brazed connection
Unit of gauge available in PSI, MPA
Power Requirements Input: 100~240 VAC
Analog Input: (1) Single-ended, voltage; Working Range: 9VDC±5%
Relay Output: 1 output per 1 input gas
Customized for : Psi, kPa, Bar, MPa, inHg, and mmHg
Alloy metal solid, tamper-proof enclosure
Stable gas specific sensor
Stainless-steel 3 pieces ball valves
Integrated circuit board
LCD Touch Screen
Power adapter and Net Hub
Pipe: Copper & Stainless steel
Valve: Stainless-steel 3 pieces ball valves
Front Panel: LCD Touch Screen
Case Body: Metal Alloy
AZB-X-X-XXXX
X=Numbers of Valves (1-8)
X=Option(G: with Gaugue, A: with Alarm, None: without )
XXXX=Tubing Dimension(05:1/2’’, 07:3/4’’, 10:1’’, 15:1-1/2’’, 20:2’’, 25:2-1/2’’, 30:3’’)
( Example: If you would like to order a three-valve zone box with Alarm:1/2’’, 3/4’’ and 1’’, then the model number should be AZB-3A-050710 )
White Ultra-thin Box with anti-rust treatment
Color coded gas modules
LCD Screen for display each gas pressure and status
.
Sensors housed in a solid, tamper-proof enclosure to act as a barrier against any interference
Individual microprocessor for each display and sensor modul
Use special sensors and color coded for positive/negative pressure, more accuracy.
Pressure sensor acquisition of gas pressure signal in pipeline, offset reduced by 50%, design accuracy 1, more accurate value
Available for monitoring the system with software MGMS V1.0, real-time monitoring, alarm, record and print, also can connect screen display, achieve modernized management.
Modbus RTU communication, better compatibility for accessing to hospital information management.
Stainless-steel 3 pieces ball valves
Blow-out proof stem
The valve for pressure rating of 600 psig
3 years’ warranty
Complies with latest edition of NFPA99
100% air tightness test and hydrostatically tested
The LCD screen display the status of each and gas pressure which will allow monitoring of the valve(s).
Alarm buzzer 90 decibels for standard, can customized
Sensors can be mounted locally or remotely for maximum distance 1000m
Sensors with DISS nut for easy connection
