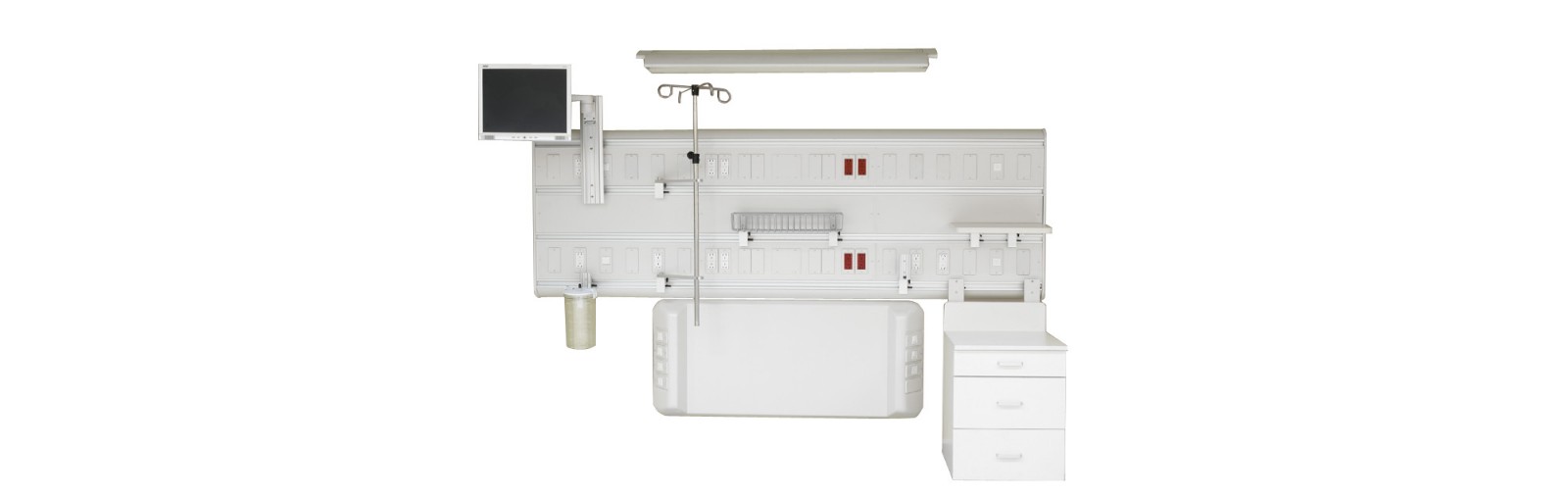

Acmd’s Horizontal bed head unit is mainly used ICU, NICU, PACU, Special Procedure, LDR post-partum, Transitional step-down, Patient rooms, Emergency departments, Radiology. Quite convenient for managing bedside equipment like monitor, ventilator, IV pump, gas outlet, electrical socket, nurse call extension and other facilities accessories. This bed head consoles enable you set up a “life-island “that allows an integration of functions for monitoring, infusion and breathing.
Simple design ,easy installation ,panel color can be chosen
Anticathode oxidation and Surface spray treated. elegant appearance, easy to clean
Be constructed of extruded, anodized aluminum alloy
Modular design for easy installation
Top, middle and bottom cover panels are made of power coated extruded aluminum. End caps are made of injection molded ABS Fire Retardant plastic.
Separation of electricity and gas. Individual connection of gas outlets and electrical wiring
Equipped with nurse call extension, convenient to call nurses
Equipped with fire resistant box for electrical sockets
Smooth rounded edges for easy infection control
Can be configured as many as 40 medical strong and weak interface; up to 12 medical gas source interface
Four rail equipment management provides powerful equipment management ability.Can even be hanging cabinet
3 years
ICU/CCU
Emergency Department/Trauma
LDR
Transitional Step-Down
Patient Rooms
Equipped with Medical gas outlets, Electric sockets, low voltage services, Nurse call system, LED lights, Earth outlets, Monitor holder, IV pole
Gas outlets optional: DIN, BS, FS, JIS, OHMEDA, DISS, Chemetron
Optional lighting can be provided by the AMCD Skyline Overbed Light.
Fully customized configurations and length to meet hospital’s specific requirements
Length optional: 36''(915mm) to 240''(6096mm)......customized according to request
Acmd’s Multifunctional Horizontal Bed System can integrate all the medical power service, and medical crane tower or a suspension bridge is the same functional diversification ,but also the regional division of nursing .
Product Size: 1000mmL*206mmH*810mmT
Packing Size: 1060mmL*240mmH*140mmT( 1pcs to 1 carton box )
Weight: G.W: 5KG; N.W: 4KG
Wire for standard and critical branch power circuits shall be #10 or #12 (as specified) type THHN stranded copper wire, 600 volt, with heat resistant thermoplastic insulation.
All ground conductors shall be installed in conduit. Each power receptacle shall have a ground conductor connected to a grounding screw. A grounding bus will be installed in each device barrier box at rough in locations, and shall be installed as to ensure grounding for the complete power system.
Powder coated panels for beautiful appearance and long life time
Laminated fascia is composed of aluminum strips with high pressure laminate (HPL), color and pattern selection by customer.
Optional service chase is made of 6063-T5 extruded aluminum with passage space for conduit and medical gas piping. High Pressure Laminate MDF inserts shall finish the exposed front, and shall match the laminate color selected.
A-BHU-ES-XX-YY-4A
XX=Length of Headwall (36'' ,48'' ,60'' ,72'' ,84'')
YY=Standard of gas outlets(DS,OH,CH,DIN,BS,FS,JS)
A=American standard sockets(G,B,F,U,Optional)
