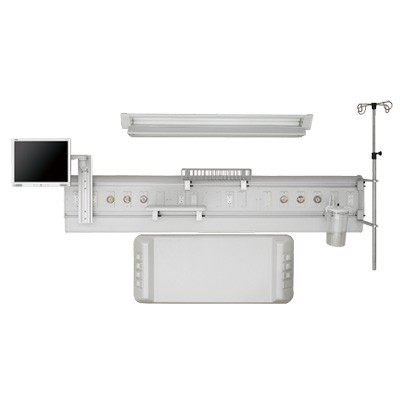

The ACMD Bed Locator System designed for protecting the wall from impact of medical beds. Individual conduit raceways construct provide extra medical gas , Lower voltage, Normal power and Emergency power supply services on either side for healthy care environment
Different colors can be customized
Anticathode oxidation and Surface spray treated. elegant appearance, easy to clean

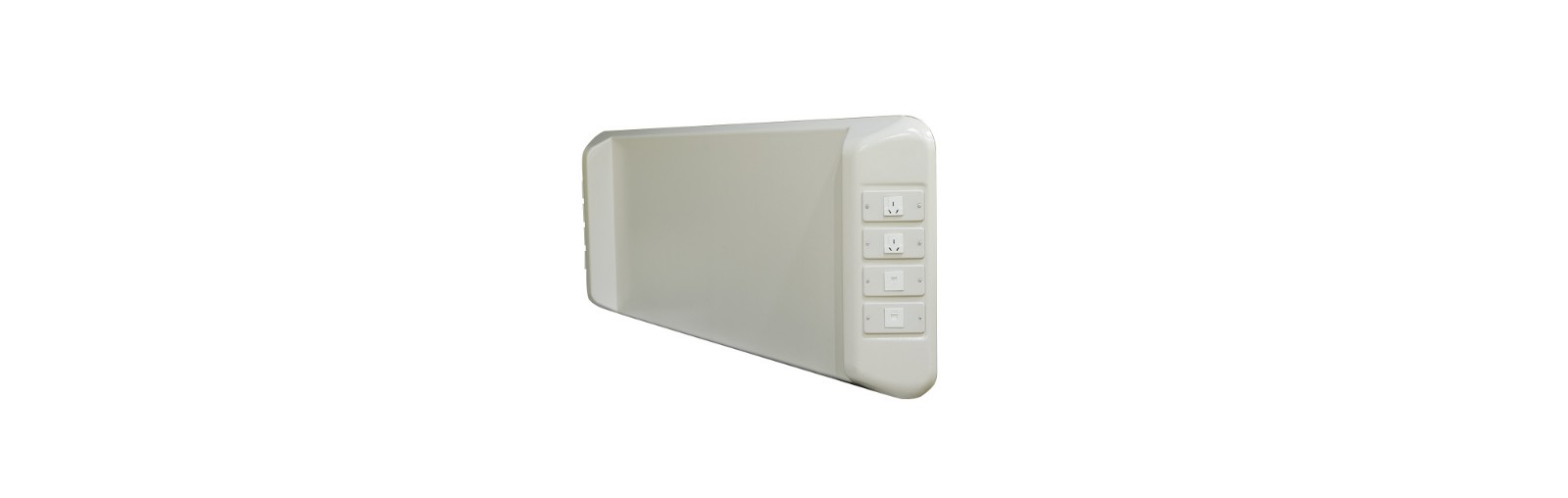

Bed Locators are built using a single piece of vacuum molded high impact Kydex-T
Inside material constructed out of 16 gauge high quality steel
Effective resistance to high impact
Separation of electricity and gas. Individual connection of gas outlets and electrical wiring
Allows for maximum of 16 electrical terminations or low voltage service
Electrical normal /low voltage /Communication/Medical gas devices installed pre-wired in individual raceways on each side of bed locators
Smooth rounded edges for easy infection control
Removable front panel for easy access of gas outlets and electrical sockets
Surface mounted gas outlets allow annual maintenance
3 years
Bed locator system comes in one standard size and shall protrude no more than 4-1/2'' (114mm) from the wall .
Height of the bed locator is 22'' (559mm) and width is 50''(1270mm)
Electric sockets: Universal, German, British, French, American standard etc.
Fully customized configurations and length to meet hospital’s specific requirements
Length optional: 1meter, 1.2m, 1.5m, 2m…customized according to request
Panel inside is 2mm thickness
Height: 22''(559mm)
Width:50''(1270mm)
Depth(from the wall):4-1/2''(114mm)
Conduit raceways are used to allow for low voltage, normal power and emergency power on either side of the unit
Wiring with heat resistant thermoplastic insulation for hot and neutral
Powder coated panels for beautiful appearance and long life time
Available in a variety of color and laminate options to match any room's décor
Customized colors with color code
