Hidden Medical Gas Panel System

Hidden Medical Gas Panel System

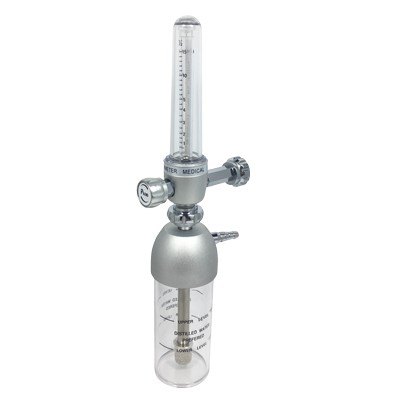

Acmd's Artwall System provides a warmth and comfortable recovery environment like home feeling without compromising access to medical services. Oxygen flowmeter and Vacuum Regulator can be hidden by Rotating 90, behind a movable picture that slides horizontally.

The Acmd Artwall is available in a 2 or 4 gas design.

  • Features
  • Specifications
  • Gallery
  • Related Products
  • Video

Features

Beautiful Appearance

  • Anticathode oxidation and Surface spray treated. elegant appearance, easy to clean

Fully Customized

  • The frame and pictures can be fully according to request

High Quality

  • Made of cold rolled steel plate, high strength with light weight

  • Gas outlets are 10000 times tested

  • Pictures easy to slide horizontally

  • Medical grade electric sockets 15 or 20 amp

Safety and Reliable

  • Separation of electricity and gas

  • SEquipped with nurse call extension, convenient to call nurses

Better Feeling

  • Designed with bedhead lamp, convenient for reading

Convenient Operation

  • Oxygen flowmeter and vacuum regulator can be hidden by rotary rotating 90 behind a movable picture that slides horizontally

Warranty

  • 3 years

Specifications

Technical Details

  • Gas outlets optional: DIN, BS, FS, JIS, OHMEDA, DISS, Chemetron

  • Electric sockets: Universal, German, British, French, American standard etc.

  • Gas Kinds: Can be 2 or 4 gases

  • Electric Quantity: 2 or 4 pcs

  • Panel inside is 4mm thickness

Physical

  • Product Size:820mmL*660mmH*130mmT

  • Packing Size: 900mm700mm*200mm( 1pcs to 1 wooden case )

  • Weight: G.W: 15KG; N.W: 10KG

Color and Frame

  • Fully customized according to request

Movement

  • Horizontal design. Left direction move to open the frame

Material

  • Frame: Cold rolled steel plate

  • Cover: Wood or Metal

  • Gas outlets: Copper

Ordering Information

  • A-ARTWALL-XYN

  • X=Number of Gas ( 02,04)

  • Y=Number of El. Sockets (02,04)

  • N=Nurse Call Extension

  • ( Example: A-ARTWALL-0402N :4 gas outlets, 2 electric sockets and with nurse call ext.)

Gallery

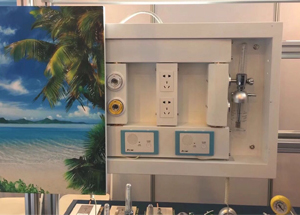

Artwall panel1.jpeg

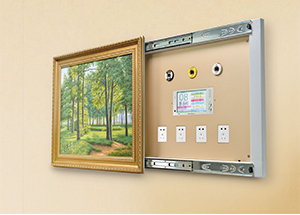

Artwall panel4.jpg

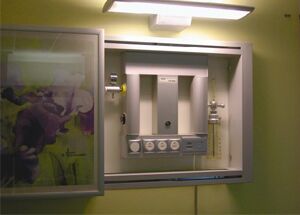

Artwall panel5.jpg

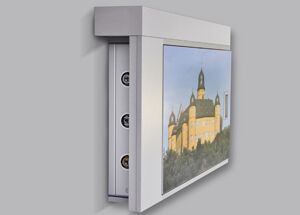

Artwall panel2.jpg

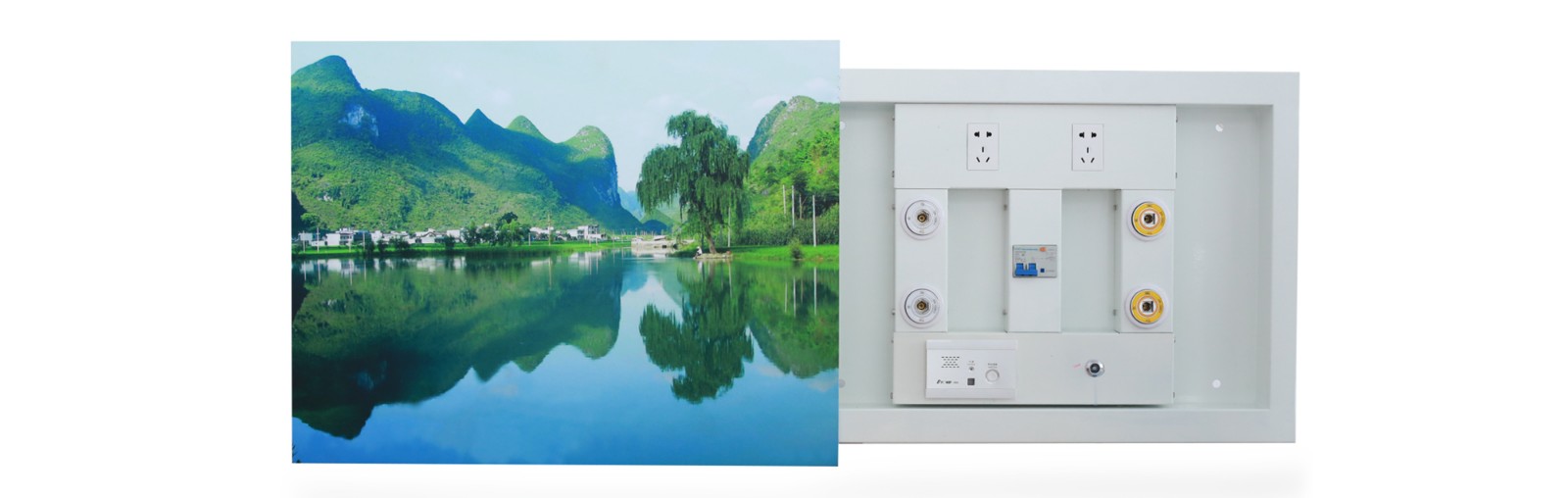

Artwall panel6.jpg
