Monoclinic Series Bed Head Unit

Monoclinic Series Bed Head Unit

Acmd’s Horizontal bed head unit is mainly used ICU, NICU, PACU, Special Procedure, LDR post-partum, Transitional step-down, Patient rooms, Emergency departments, Radiology. Quite convenient for managing bedside equipment like monitor, ventilator, IV pump, gas outlet, electrical socket, nurse call extension and other facilities accessories. This bed head consoles enable you set up a “life-island “that allows an integration of functions for monitoring, infusion and breathing.

  • Features
  • Specifications
  • Gallery
  • Related Products
  • Video

Features

Beautiful Appearance

  • Powder coated panels, white color for standard

  • Anticathode oxidation and Surface spray treated. elegant appearance, easy to clean

High Quality

  • Made of Hospital grade 6063-T5 lightweight extruded aluminum alloy, strength with light weight

  • Gas outlets are 10000 times tested

  • Medical grade electric sockets 15 or 20 amp

Safety and Reliable

  • Separation of electricity and gas. Individual connection of gas outlets and electrical wiring

  • Equipped with nurse call extension, convenient to call nurses

  • Equipped with fire resistant box for electrical sockets

  • Smooth rounded edges for easy infection control

Easy Installation and Maintenance

  • Removable front panel for easy access of gas outlets and electrical sockets

  • Surface mounted gas outlets allow annual maintenance

Warranty

  • 3 years

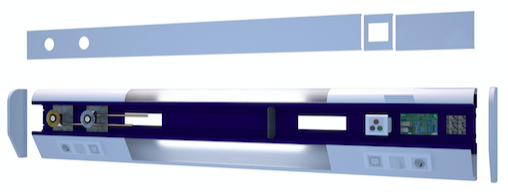

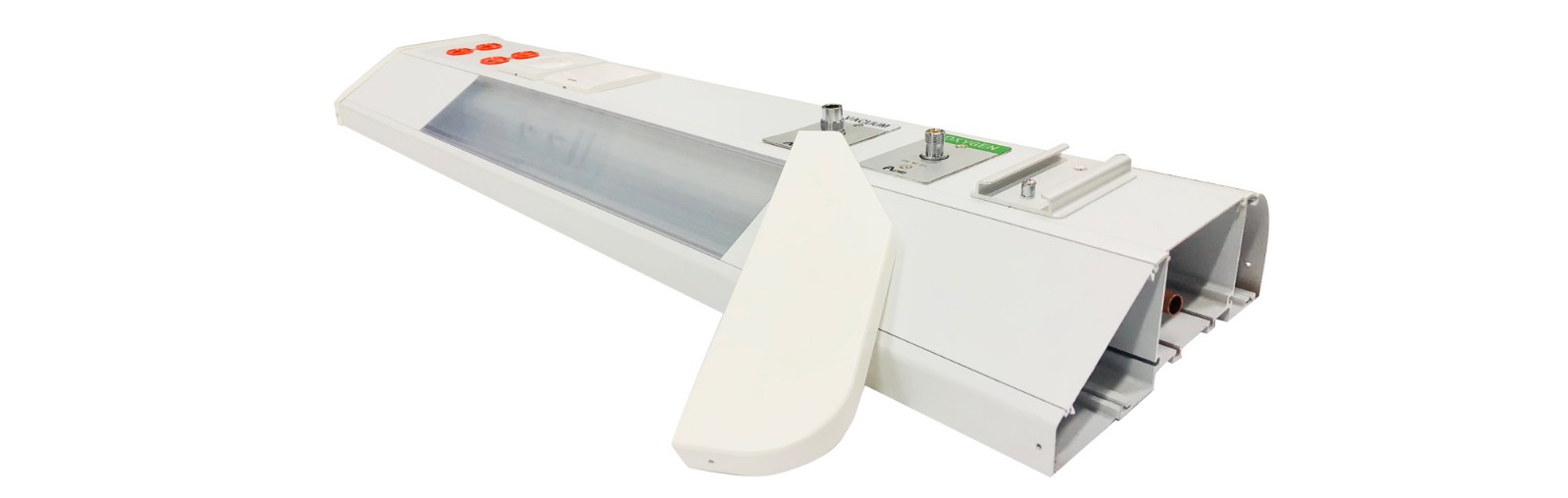

    ACMD BED HEAD UNIT.png

Fully Customized

  • Length: 1meter, 1.2meter, 1.5meter, 2meter...maximum 6 meter.

  • Medical Gas Outlets: Ohmeda, DISS, Chemetron, DIN, BS, JIS, FS optional

  • Electric Sockets: American Standard, German Standard, British Standard, French Standard etc.

  • Led light: Reading light or Ambient light

  • Nurse Call: Nurse call extension or patient card.

Specifications

Technical Details

  • Equipped with Medical gas outlets, Electric sockets, Nurse call system, LED lights, Earth outlets, Monitor holder, IV pole

  • Gas outlets optional: DIN, BS, FS, JIS, OHMEDA, DISS, Chemetron

  • Electric sockets: Universal, German, British, French, American standard etc.

  • Fully customized configurations and length to meet hospital’s specific requirements

  • Length optional: 1meter, 1.2m, 1.5m, 2m…customized according to request

  • Panel inside is 2mm thickness

Physical

  • Product Size: 1000mmL*206mmH*810mmT

  • Packing Size: 1060mmL*240mmH*140mmT( 1pcs to 1 carton box )

  • Weight: G.W: 5KG; N.W: 4KG

Electrical Wiring

  • Providing connecting electrical wiring for electric sockets and lights for easy installation service

  • Wiring with heat resistant thermoplastic insulation for hot and neutral

Color

  • Powder coated panels for beautiful appearance and long life time

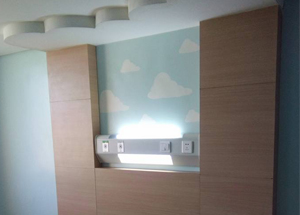

  • Different pictures optional for children’s room

  • Customized colors with color code

Material

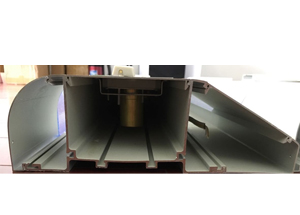

  • Frame: Hospital grade 6063-T5 lightweight extruded aluminum alloy

  • Ending cover: Injection molded ABS Fire Retardant Plastic or Aluminum Cover

  • Front panels, top and bottom cover panels removable to provide access for easy installation and maintenance of the services

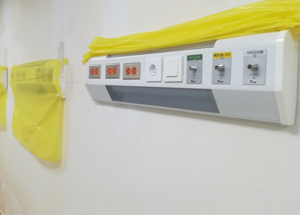

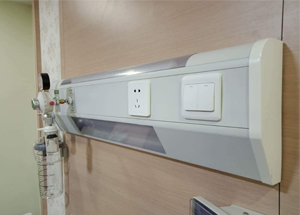

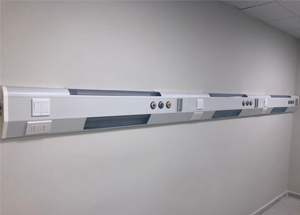

Gallery
