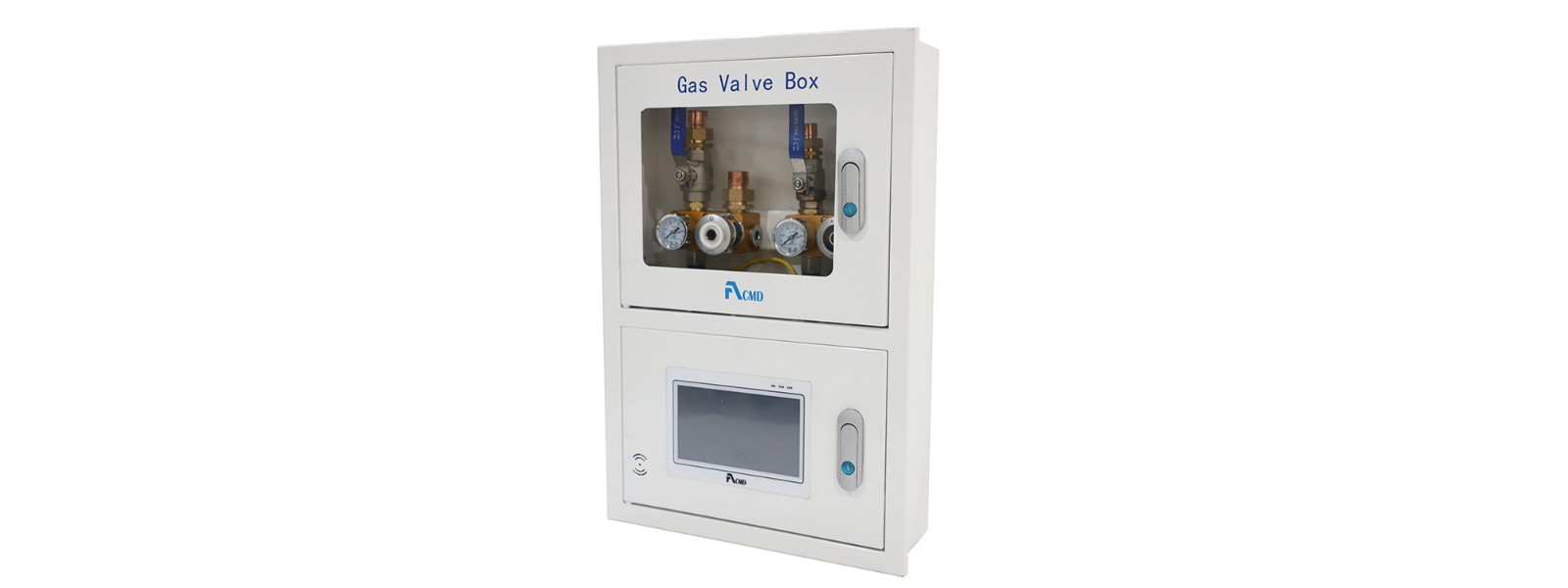

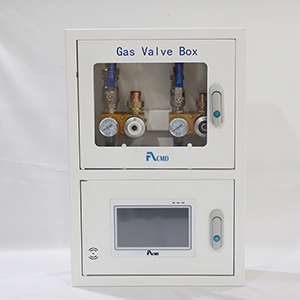

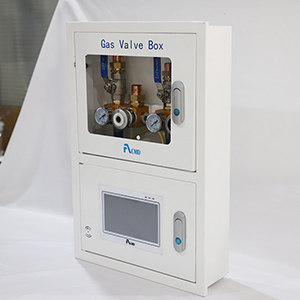

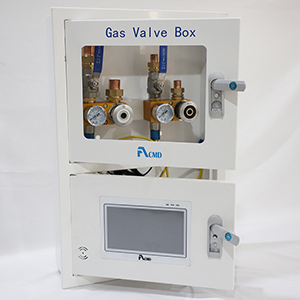

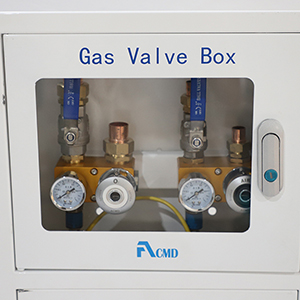

Zone Valve with Alarm Combo Unit-Buy Product on ACMD Technology Co., Ltd

Features

Full port design, openable window with knob handle
Color-coded labels for identity gas services
Emergency gas outlets design
The valve box frame constructed of aluminum surface flat without indentations, to facilitate cleaning

The tinted transparent front window use to be constructed of plexiglas which will allow monitoring of the valve(s), gauge(s) and outlet(s)

Sized up to 6 kinds of gases (Oxygen, Vacuum, Air, Nitrous Oxide, Carbon Dioxide, Evacuation)
Tube size: Customized (1/2’’-3’’)
Provided with 60 diameter gauges

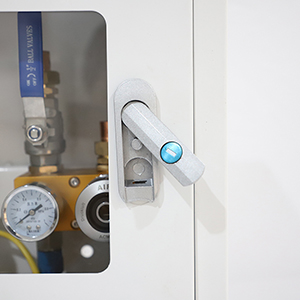

Openable window with knob handle

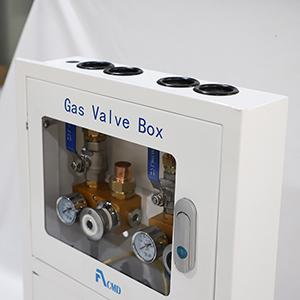

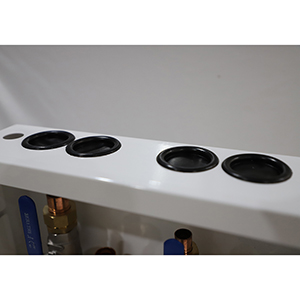

Up and down pipeline are more convenient for installation and use of medical gas
Color-coded labels for identity gas services

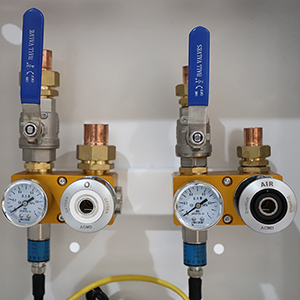

Stainless-steel 3 pieces ball valves
Silver brazed connection
Fixer for copper tube at both side of tube extensions, makes it more tight and without shaking when close the valves
Easy access pull out window
Unit of gauge available in PSI, MPA

100% air tightness test , leak tested and hydrostatically
Complies with NFPA 99 and CGA G-4.1 standards DIMENSIONS units in inch (millimeter)

Modular structure, adjustable to different wall
The valve box frame constructed of aluminum surface flat without indentations, to facilitate cleaning
Type k copper pipe extensions that are cleaned for medical gas service shall be fitted into each side of the valve.
Dual gauge ports shall be drilled into the pipe extensions for the purpose of inserting gauges.

AVC-X-X-XXXX
X=Numbers of Valves (1-6)
X=Option(G: with Gaugue, A: with Alarm, None: without )
XXXX=Tubing Dimension(05:1/2’’, 07:3/4’’, 10:1’’, 15:1-1/2’’, 20:2’’, 25:2-1/2’’, 30:3’’)
( Example: If you would like to order a three-valve zone box with gauge:1/2’’, 3/4’’ and 1’’, then the model number should be AZB-3G-050710 )
