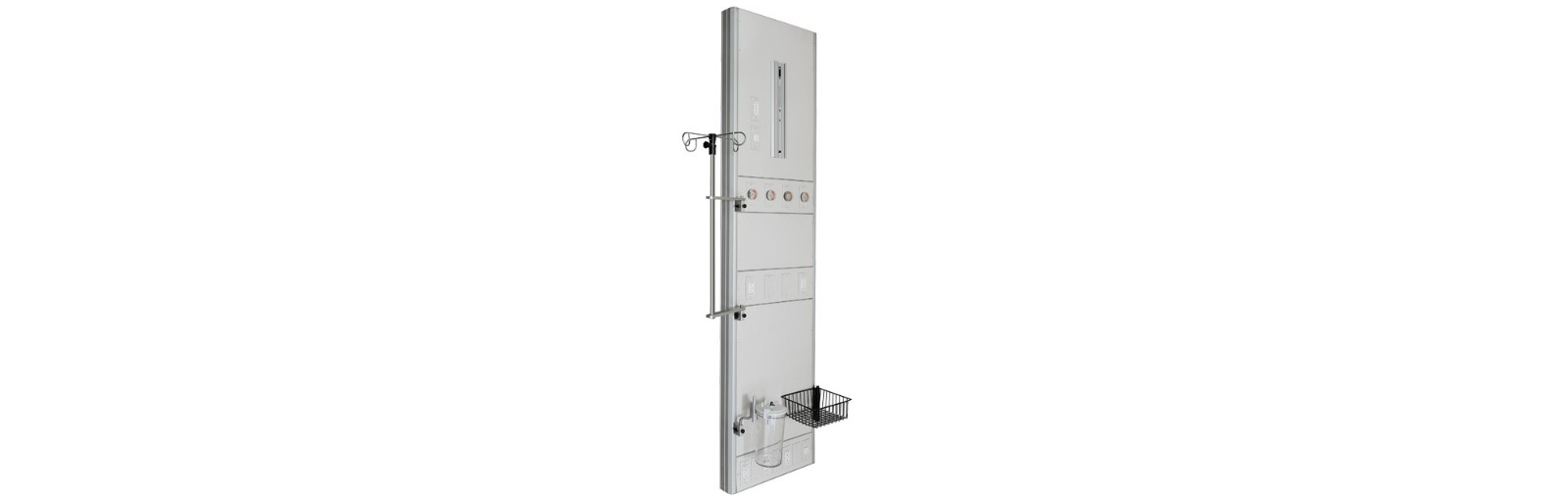

ACMD vertical headwalls makes the healing environment clinically functional for more complete and dependable care. The headwalls provide ergonomically placed medical gases ,electrical services and equipment management and will contribute to any interior designscheme with a wide variety of laminate choices.
Accessory rails can be used for IT, monitor, cord and equipment management to meet current needs and provide seamless upgrades for future technology
Anticathode oxidation and Surface spray treated. elegant appearance, easy to clean
Vertical headwall units are available studded or non-studded to meet your installation preference
Various dimensions available for vertical headwall units to meet your acuity and aesthetic needs
Ideal for rooms with limited space
The headwalls only protrude 3.5 inches from the wall to release maximum nursing care space
14" and 19" (35.56 cm and 48.26 cm) standard units reduce clutter and allow for access to services
The standard configuration includes nurse call system, medical gas outlet, electrical services, data services and accessories
Sleek design, perfectly fit into clinic environment
ICU/CCU
Emergency Department/Trauma
LDR
Transitional Step-Down
Patient Rooms
Special Procedure
The vertical headwall is recessed into the wall beside the bed .Pre-piped and wire
Vertical headwall units are recessed into the wall to limit equipment overhang
3 Years
Equipped with Medical gas outlets, Electric sockets, Nurse call system, LED lights, Earth outlets, Monitor holder, IV pole
Gas outlets optional: DIN, BS, FS, JIS, OHMEDA, DISS, Chemetron
Electric sockets: Universal, German, British, French, American standard etc.
Fully customized configurations and length to meet hospital’s specific requirements
Length optional: 1meter, 1.2m, 1.5m, 2m…customized according to request
Panel inside is 3mm thickness.
Product Size: 1000mmL*300mmH*110mmT
Packing size: 1060mmL*330mmH*150mmT( 1pcs to 1 carton box )
Weight: G.W: 8KG; N.W: 7.5KG
Two integrated accessory rails are clear etched anodized or powder coated aluminum
Fascia is a single piece of laminated or powder coated aluminum
Pre-studded with all services running between the studs, further reducing installation time
Back-to-back installation on 3 5/8" studs saves you time and money on installation cost
Front panels, top and bottom cover panels removable to provide access for easy installation and maintenance of the services
Medical gas distribution shall be supplied by pipe drops to a single point connection above the unit. All Medical Gas Outlets and piping shall be brazed and tested in accordance with NFPA 99c
All ground conductors shall be installed in conduit. Each power receptacle shall have a ground conductor connected to a grounding screw. A grounding bus will be installed in each device barrier box, and shall be installed as to ensure grounding for the complete power system
Electrical receptacles shall be Hospital Grade 15 or 20 amp, 120 or 277 volt, UL listed and marked Hospital Grade. Simplex, duplex, and (optional) safety receptacles shall be NEMA style 5-15R or 5-20R. Optional locking receptacles shall be simplex type, 20 amp, 120 or 277 volt, color black, and be HUBBELL lock 23000 HG style, or equivalent
Wire for standard and critical branch power circuits shall be #10 or #12 type THHN stranded copper wire, 600 volt, with heat resistant thermoplastic insulation
Powder coated panels for beautiful appearance and long life time
Different pictures optional for children’s room
Customized colors with color code
A-BHU36-MUTE1-3OH-4A
36" Means the length of bed head unit ( 24",36",48",60" optional fully customized )
"3OH" Means 3 Ohmeda gas outlets
"4A" Means 4 American standard electric sockets
