Ceiling Column

Ceiling Column

ACMD Medical Rigid Ceiling Column are designed for operating theatres, anaesthetic rooms and similar medical locations. They are an ergonomic solution with internal separation for the provision of medical gases system, electrical system, data, voice and extra low voltage services required in the area of surgical rooms. Rigid Ceiling Column are supplied pre-piped, pre-wired and tested and CE marked under the Medical Devices Directive 93/42/EEC.

  • Features
  • Gallery
  • Related Products
  • Video


General Features

  • Complete unit with 4 gases, AGSS and 8 electrical sockets Services

  • Consists of pendant shell, internal copper tubes, terminal units and electrical sockets

  • Manufactured in stainless steel sheet 304, high strength and easy for cleaning

  • Prismatic design

  • Copper tube, cleaned and degreased to medical gas standards

  • The copper pipes pass the full length of the column and protrude 150mm above the plate for connection to the incoming gas pipes

High Quality

  • Made of cold rolled steel plate, high strength with light weight

  • Gas outlets are 10000 times tested

  • Medical grade electric sockets 15 or 20 amp

Safety and Reliable

  • Separation of electricity and gas

Technical Details

  • Gas outlets optional: DIN, BS, FS, JIS, OHMEDA, DISS, Chemetron

  • Electric sockets: Universal, German, British, French, American standard etc

  • Gas Kinds: 4 gases and AGSS

  • Electric Quantity: 8 pcs sockets


  • Stainless steel sheet 304 or painted stainless steel


  • Column Height:30 inches, 36inches, 42 inches

  • Column Width: 400mm

  • Packing size:1300mm*600mm*60mm( 1 set to 1 wooden case )

  • Weight:G.W: 150KG; N.W:110KG


  • 3 Years

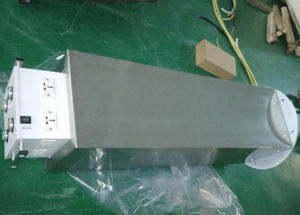

rigid ceiling column1.jpg

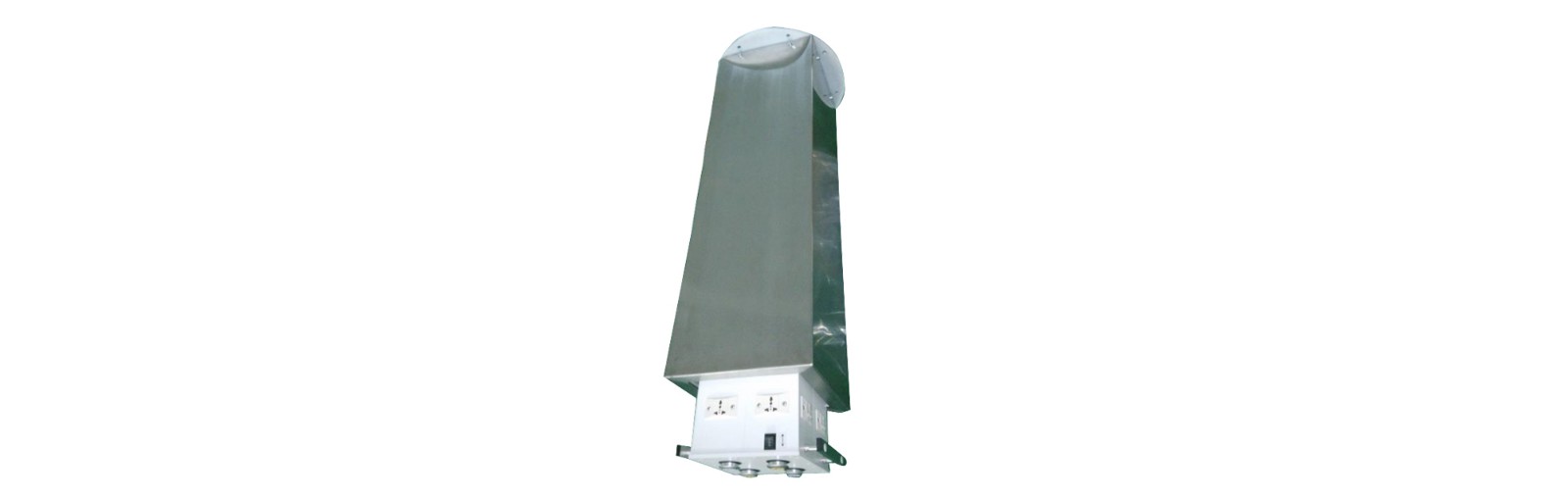

rigid ceiling column2.jpg

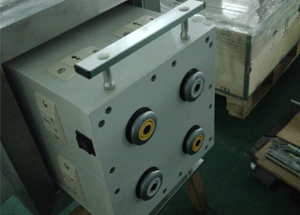

rigid ceiling column3.jpg

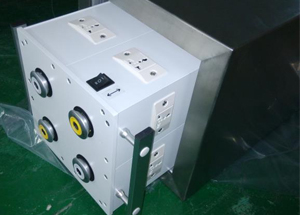

rigid ceiling column4.jpg
