Overbed Patient Lighting

Overbed Patient Lighting

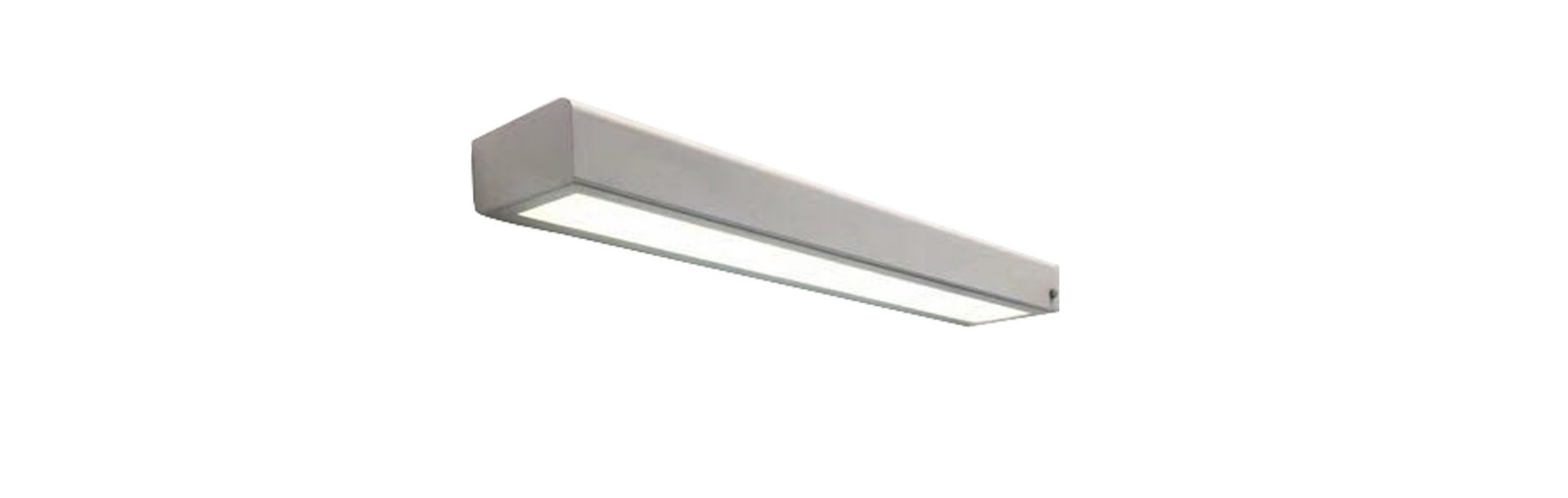

Acmd’s overbed light offers a sleek and elegant design that meets the needs of both the patient and caregiver. Incorporating the latest in LED technology the Skyline light is designed to provide high quality illumination while meeting the aesthetic requirements of the patient room. The Skyline Series light is designed with seam-free surfaces and clean edges that eliminate dust traps and make cleaning easy.

  • Features
  • Specifications
  • Gallery
  • Related Products
  • Video

Features

Finish

  • Marine Grade Aluminum Extrusion

  • Anticathode oxidation and Surface spray treated. elegant appearance, easy to clean

High Quality

  • Marine Grade Aluminum Extrusion, high strength with light weight.

  • Life of LEDs: L70 50,000 hours

Different Optional

  • Reading light, Ambient light, Examination light, Night light

Easy Installation

  • With wall mounted holes for hinge, single man enough to install

Warranty

  • 3 Years

Specifications

Technical Details

  • Multiple Directional Light Configurations: Reading light, Ambient light, Examination light, Night light

  • Color quality: 80 CIR, 90CRI

  • Color temperature: 3000k, 3500k, 4000k

  • Life of LEDs: L70 50,000 hours

  • Warranty: Limited 5 year warrnty

Physical

  • Product Size: 820mmL*660mmH*130mmT

  • Packing Size: 900mmL700mmH*200mmT( 1pcs to 1 wooden case )

  • Weight: G.W: 25KG; N.W: 15KG

Material

  • Hospital grade 6063-T5 lightweight extruded aluminum alloy

  • Matching heavy duty metallic die-cast end caps. Powder coated, easy to clean

Length of Lamp

  • 24 inches, 36 inches, 48 inches, 60 inches

Voltage

  • 110V, 60HZ; 220V, 50HZ

Ordering Information

  • A-LIGHT-XX-V-CT ( A-LIGHT-24AR-110-LED35 )

  • X=Length of Lamp ( 24, 36, 48, 60 )

  • X=Optional ( Ambient light and Reading light)

  • V=Voltage( 110,220 )

  • CT=Color Temperature( LED 30 3000K, LED35 3500K, LED40 4000K)

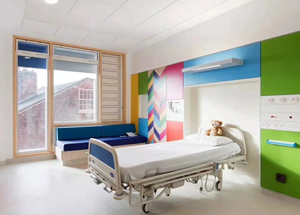

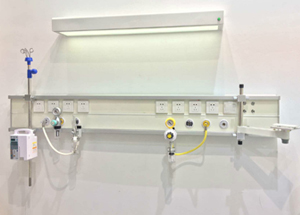

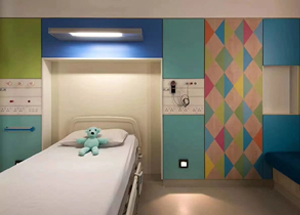

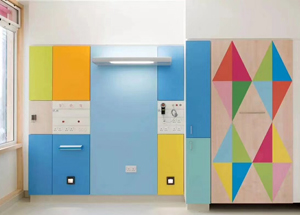

Gallery


Video
