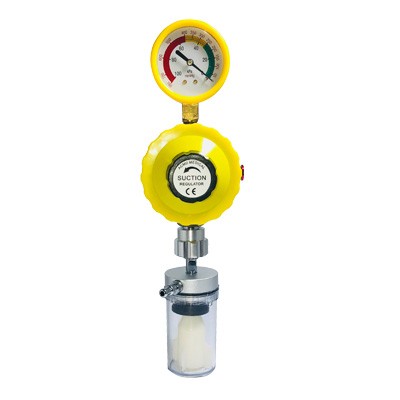

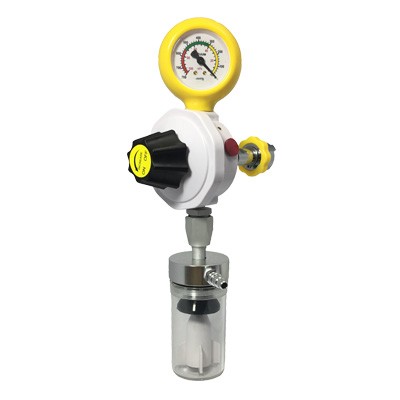

GS Series Suction Regulator

GS Series Suction Regulator

Acmd’s Medical vacuum regulator is widely used in healthy care system or operation room system. Unique stainless steel diaphragm type step-less valve and one-step switch make it more convenient and long life for sucking the patients' secretion, body fluid and sputum.

  • Features
  • Specifications
  • Gallery
  • Related Products
  • Video

Features

Easy Reading

  • 60mm (2.5 inches) vacuum pressure gauge

  • Dual scale mmHg& Kpa with easy read flow rate window

Accuracy

  • Adjustment type: Stainless steel diaphragm

  • Adjustment knob for accuracy control

Safety and Reliable

  • Over- pressure protection, over flow safety trap design

  • More than 50times pressure test to ensure no leakage

  • Safety trap made of PC, not easy to break

  • Internal relief valve

Easy Operation & Maintenance

  • Big size rotary control knob to adjust it conveniently

  • Straight tube type relief valve, easy to sterilize and clean

  • One-touch switch, color coded on green/off red.

Warranty

  • 3 years

Specifications

Technical Details

  • Pressure range: 0-700mbar.

  • Maximum flow: 40L/min (AIR)

  • Size of gauge: 60mm(25inches)

  • Capacity of safety trap: 170ml

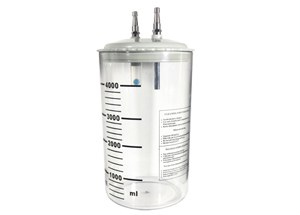

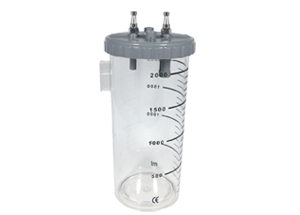

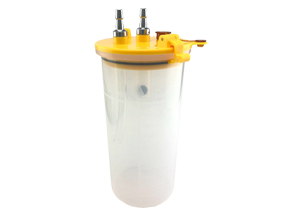

  • Capacity of suction canister: 1L/2L/4L

  • Input Connection: accepted DIN, BS, FS, JIS, OHMEDA, DISS, Chemetron adaptor

  • Medical extended tube: 1.5M/2M/3M/5M or customized

Vacuum Gauge Range

  • Adult: 0-760mmHg

  • Child: 0-200mmHg

Input Thread Size

  • M10*1mm, M12*1mm, M14*1mm, 1/8”-27” NPT

Physical

  • Product Size: 300mmL*90mmH*90mmW

  • Packing Size: Inner box: 20mm*17mm*8mm

    Outside box: 52mm*38mm*31mm (20pcs/carton)

  • Weight:

     Unit: G.W: 0.85KG; N.W: 0.8KG

     Amount: G.W: 11.5KG; N.W: 10.5KG

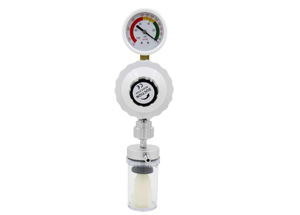

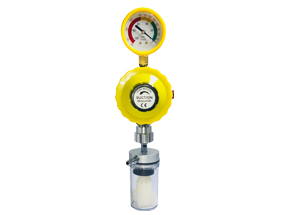

Color Options

  • ISO Standard: Yellow

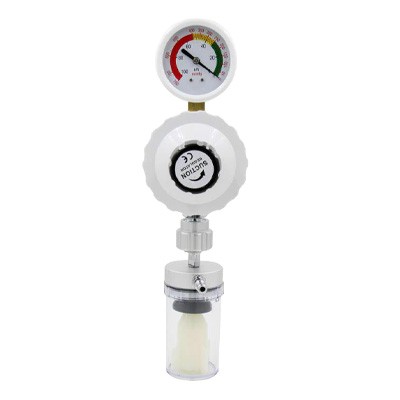

  • USA Standard: White

Material

  • Valve: brass

  • Safety Trap: PC
