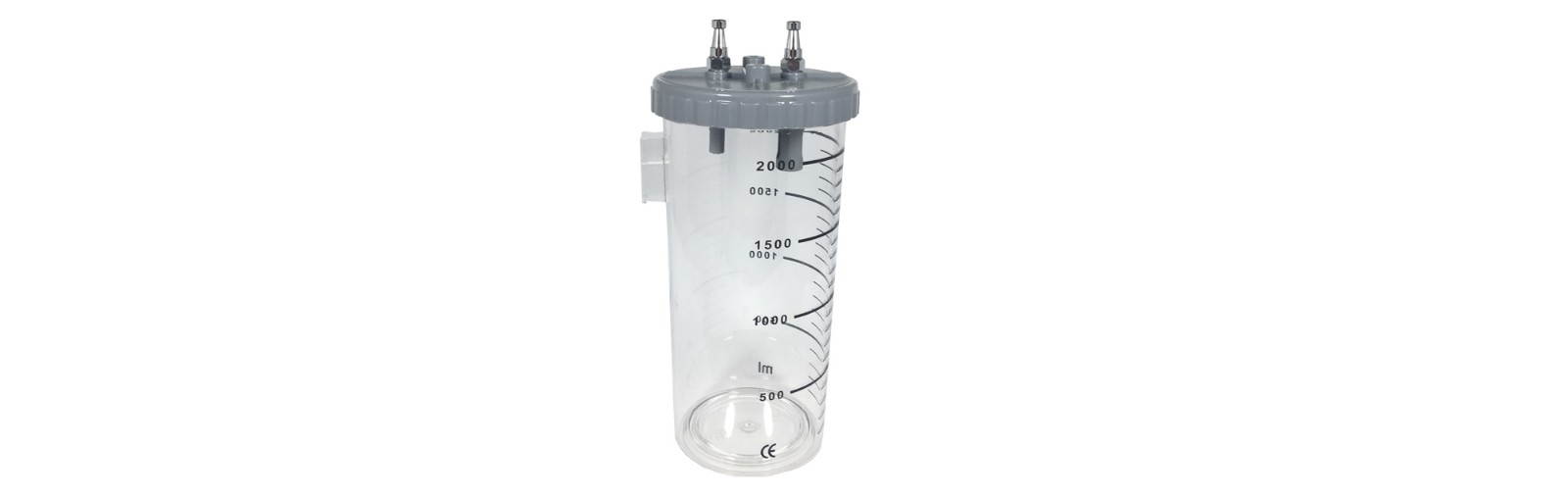

2 Liter Reusable Suction Canister

2 Liter Reusable Suction Canister

The ACMD Reusable Suction Canister is used in surgery and nursing for drainage and storage for treatment of patients ' waste liquid in hospital, used with suction regulators for wall and electric suction regulators in medical center suction system.

With the safety design of the whole seal, prevents overflow. The material of our suction bottle is Polycarbonate, safe and high temperature resistance, and we have a variety of volume of suction canister to meet different needs.

  • Features
  • Specifications
  • Gallery
  • Related Products
  • Video

Features

Color Coded Lid

  • Grey color for standard, different color could be customized

High Quality

  • Made of Polypropylene(PP) material, stronger than blow molding bottle body

  • Etching tick marks, never worn

Safety and Reliable

  • With safety valve, prevent flow back to regulator and pipeline system

  • 100% gas tightness tested

  • “Patient” & “ Vacuum” Clearly market on lid

  • Stop suction when liquid exceed than maximum level

Warranty

  • Two years after direct sales

Easy Operation

  • Quick opening cover structure, quick to replace bottle

  • Can equipped with vacuum regulator directly

Easy to Clean

  • Straight cylinder overflow valve

  • Sterilize or disinfect

  • Nipples easy screwed down

Easy to Read

  • With scale line on bottle

  • Polypropylene(PP) material, easy to see the level of liquid

Specifications

Model Number

  • Two Tube Connector: A-SCG-2L

Physical

  • Maximum Capacity: 1000ml

  • Dimension: Φ140x270 mm.

  • Packing Size: 450*370*72mm( 15pcs to 1 carton case )

  • Weight: G.W: 11KG; N.W: 10.5KG

  • Connection Tube: Φ6-8mm, used with large capacity vacuum system

Material

  • Jar: Polypropylene(PP)

  • Lid: ABS

  • Inlet and Outlet Connector: Brass

Structure

  • Quick opening cover structure

  • With relief valve to prevent back flow

Storage

  • Between -10 and 40 °C(between. 14-104°F)in a dry and clean place.

  • Keep the device in its plastic bag as long as possible.

  • Once a year, check the tightness of the jar and the state of the gaskets

Connector

  • "Patient" Nipple: Towards the suction cathether

  • "Vacuum" Nipple: Towards the suction controller
