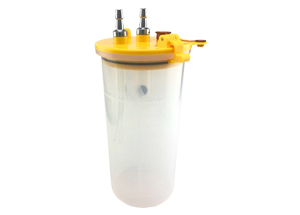

The ACMD Reusable Suction Canister is used in surgery and nursing for drainage and storage for treatment of patients ' waste liquid in hospital, used with suction regulators for wall and electric suction regulators in medical center suction system.
With the safety design of the whole seal, prevents overflow. The material of our suction bottle is Polycarbonate, safe and high temperature resistance, and we have a variety of volume of suction canister to meet different needs.
Yellow for ISO color standard, White for USA color standard
Made of Polypropylene(PP) material, stronger than blow molding bottle body
Etching tick marks, never worn
With safety valve, prevent flow back to regulator and pipeline system
100% gas tightness tested
“Patient” & “ Vacuum” Clearly market on lid
Stop suction when liquid exceed than maximum level
Two years after direct sales
Quick opening cover structure, quick to replace bottle
Can equipped with vacuum regulator directly
Straight cylinder overflow valve
Sterilize or disinfect
Nipples easy screwed down

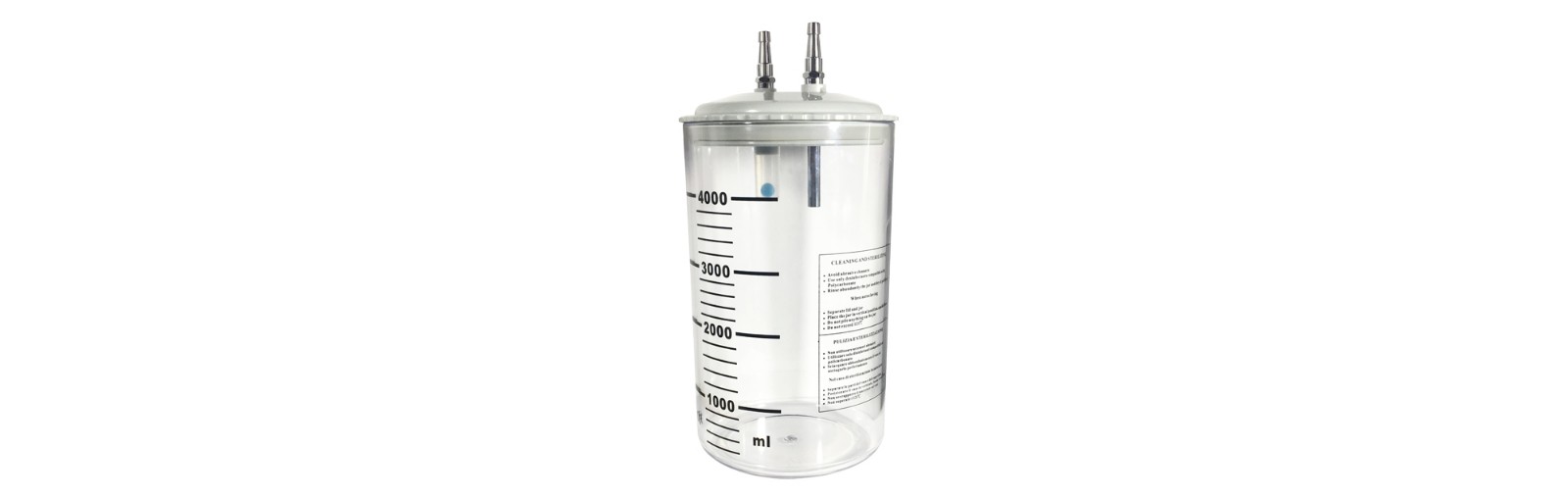

With scale line on bottle
Polypropylene(PP) material, easy to see the level of liquid
Two Tube Connector: A-SCB-4L
Maximum Capacity: 4000ml
Dimension: Φ170*350 mm.
Packing Size: 720*540*380mm( 12pcs to 1 carton case )
Weight: G.W: 13KG; N.W: 12KG
Connection Tube: Φ6-8mm, used with large capacity vacuum system
Jar: Polypropylene(PP)
Lid: ABS
Inlet and Outlet Connector: Brass
Quick opening cover structure
With relief valve to prevent back flow
Between -10 and 40 °C（between. 14-104°F）in a dry and clean place.
Keep the device in its plastic bag as long as possible.
Once a year, check the tightness of the jar and the state of the gaskets
"Patient" Nipple: Towards the suction cathether
"Vacuum" Nipple: Towards the suction controller
