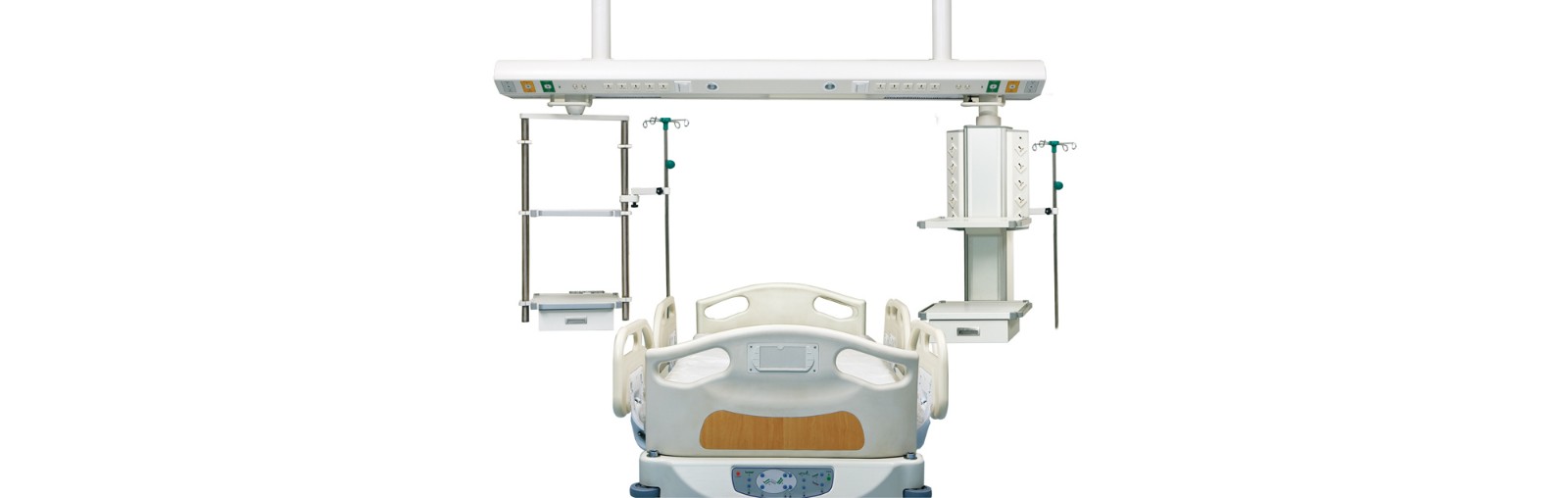

ICU Dry-wet Separation A1 Series Bridge

ICU Dry-wet Separation A1 Series Bridge

Designed specially for ICU, rescue and recovery room, integrate majority of treatment and healthy care equipment, and centralized supply gas and electricity.

Wet and dry separation design, medical equipment can be accessed from any side of the patient. Can move aside quickly if don't use, providing the largest rescue place.

All closed tower design, create a clean environment, reduce the incidence of cross infection, improve the cure rate.

Gas and electricity layout separated on the main girder and dry side, more convenient accessing for medical care person.

  • Specifications
  • Gallery
  • Related Products
  • Video

Specifications

Main Grider

  • Length: 2400-2800mm(can customized according to request)

  • Electrical Socket: 5pcs Universal 3-Pin socket

  • Grounding Terminal: 2pcs (With grounding cables)

  • Auxiliary Lighting: 1pcs

  • Light Switch: 1pcs

  • Night Lighting: 1pcs

Dry Side

  • Hander Assembly: 1 set

  • Length: 1000mm

  • Rotating Angles: 340°

  • Movement Distance: 500mm

  • Shelves: 2pcs

  • Drawer: 1pcs

Wet Side

  • Pedestal Assembly: 1 set

  • Length: 1000mm

  • Rotating Angles: 340°

  • Electricity Socket: 10pcs

  • Grounding Terminal: 2pcs (With grounding cables)

  • Movement Distance: 500mm

  • Shelves: 2pcs

  • Drawer: 1pcs

  • IV Pole: 1pcs(extension arm optional)

  • Storage Basket: SUS304(146*156*246mm)

  • RJ15: 1pcs

  • RJ45: 1pcs

Weight Loading Capacity

  • Wet Side Weight Loading: 150kg

  • Dry Side Weight Loading: 150kg

  • Shelf Loading: ≤80kg

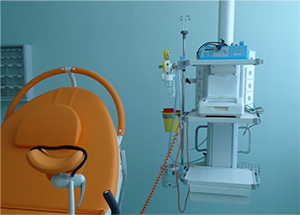

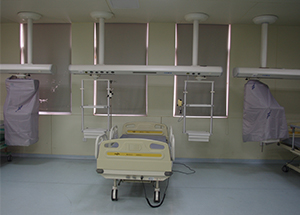

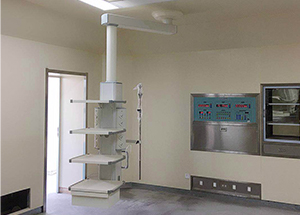

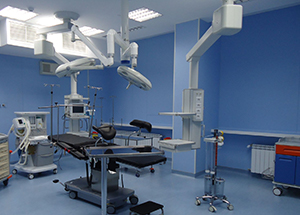

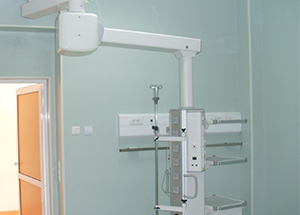

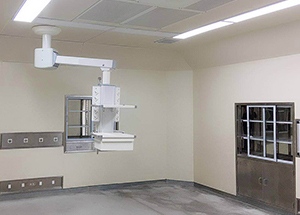

Gallery
