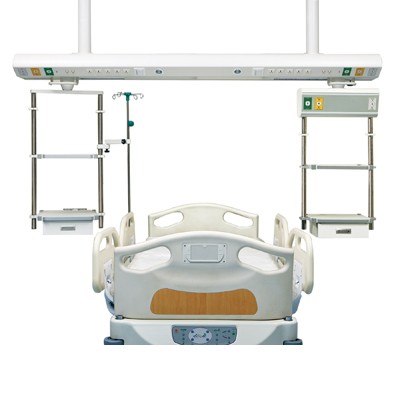

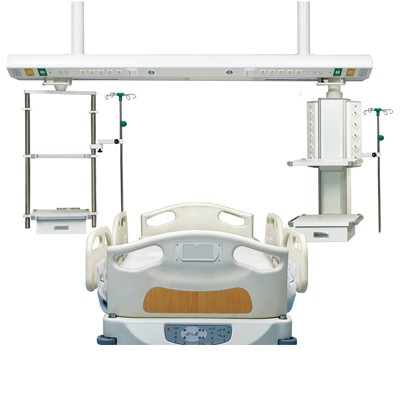

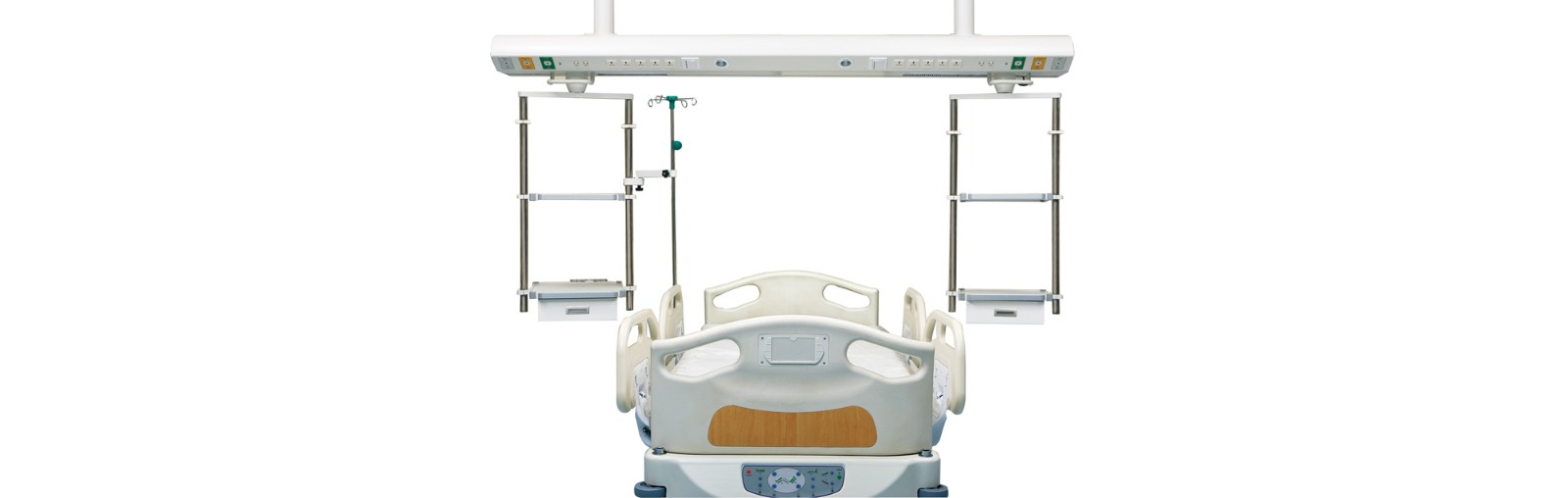

ICU Dry-wet Separation A Series Bridge

ICU Dry-wet Separation A Series Bridge

Designed specially for ICU, rescue and recovery room, integrate majority of treatment and healthy care equipment, and centralized supply gas and electricity.

Wet and dry separation design, medical equipment can be accessed from any side of the patient. Can move aside quickly if don't use, providing the largest rescue place.

All closed tower design, create a clean environment, reduce the incidence of cross infection, improve the cure rate.

Gas and electricity layout separated on the main girder and 1850mm distance from the floor, more convenient accessing for medical care person.

  • Specifications
  • Gallery
  • Related Products
  • Video

Specifications

Main Grider

  • Length: 2400-2800mm(can customized according to request)

  • Electrical Socket: 10pcs Universal 3-Pin socket

  • Grounding Terminal: 4pcs (With grounding cables)

  • Auxiliary Lighting: 1pcs

  • Light Switch: 1pcs

  • Night Lighting: 1pcs

  • RJ15: 1pcs

  • RJ45: 1pcs

Dry Side

  • Hander Assembly: 1 set

  • Length: 1000mm

  • Rotating Angles: 340°

  • Movement Distance: 500mm

  • Shelves: 2pcs

  • Drawer: 1pcs

Wet Side

  • Hander Assembly: 1 set

  • Length: 1000mm

  • Rotating Angles: 340°

  • Movement Distance: 500mm

  • Shelves: 2pcs

  • Drawer: 1pcs

  • IV Pole: 1pcs(extension arm optional)

  • Storage Basket: SUS304(146*156*246mm)

Weight Loading Capacity

  • Wet Side Weight Loading: 150kg

  • Dry Side Weight Loading: 150kg

  • Shelf Loading: ≤80kg
