Identify gases using the USA color standard

360°Swivel Inlet Pipe for easy installation,safety system for Non-crossing of Gases

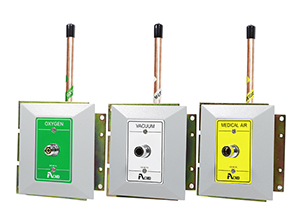

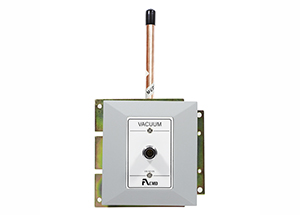

Gas types include oxygen, vacuum, air, nitrogen, carbon dioxide, exhaust gas, etc.

Universal Rough-In Assembly to accept Quick Disconnects

100% air tightness test , leak tested and hydrostatically

10,000 times of plugging and unplugging

Complies with NFPA 99 and CGA G-4.1 standards DIMENSIONS units in inch (millimeter)

Long Copper Tube or threaded interface

Console type, Wall mounted type etc.

Secondary insertion and removal to prevent unintentional pull-out and personal safety

Cover with detachable protection

Packing Size: 640mm*410mm*310mm (Console type)( 24pcs to 1 Carton )

Weight: G.W: 24KG; N.W: 22KG (Wall type)

Outlet panel: Zinc Alloy

Valve part: Brass

Gas pipe: Copper

Installing bracket: Stainless steel

Gas adapter: Stainless steel

Panel: Aluminum

A-CONW-DS-OXY

CONW=Installation Type (CON: Console, CONW: Wall mounted)

DS= DISS

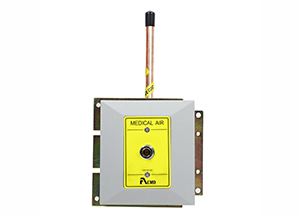

OXY=Gas Type(AIR: Medical Air, N20: Nitrogen, CO2: Carbon Dioxide)

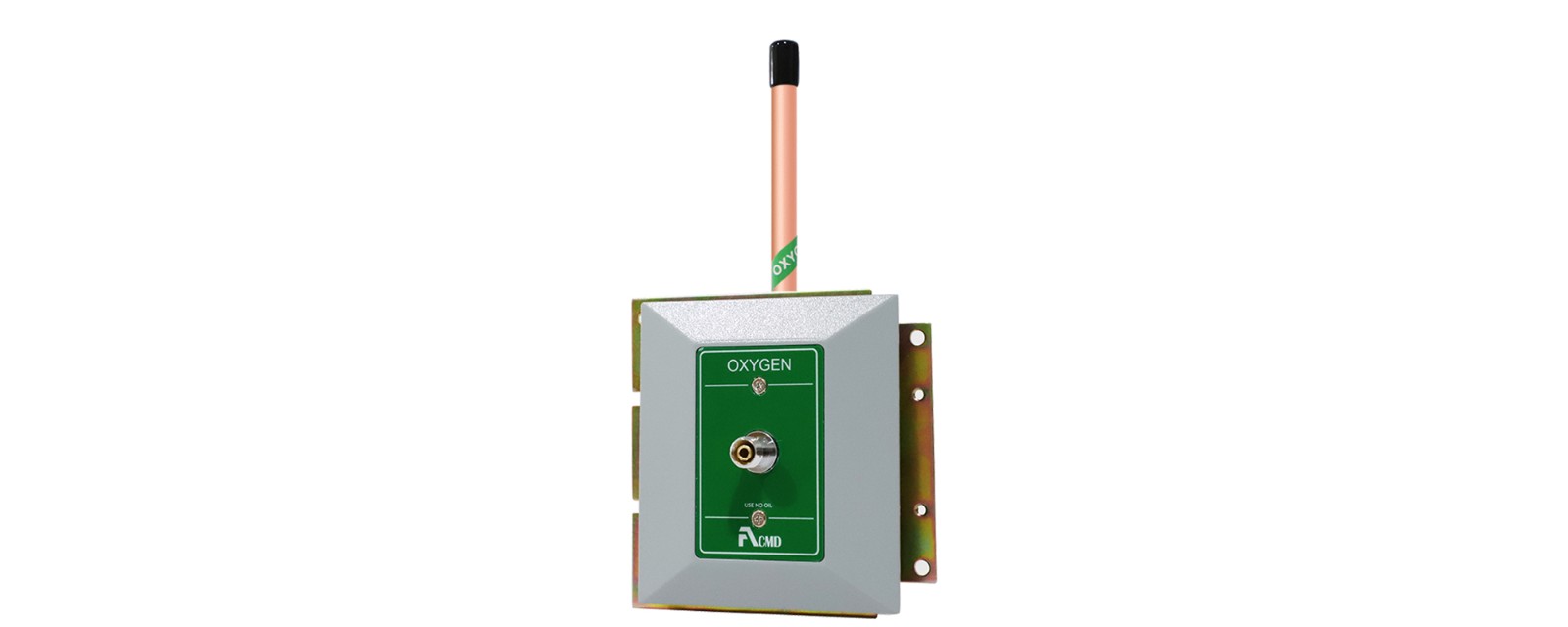

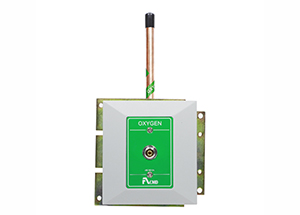

( Example:A-CONW-DS-OXY :Metal panel type Wall DISS oxygen gas outlets.)
