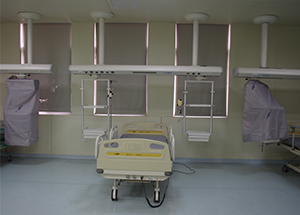

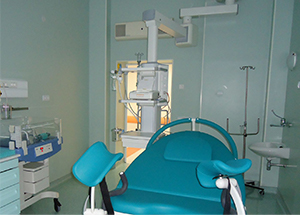

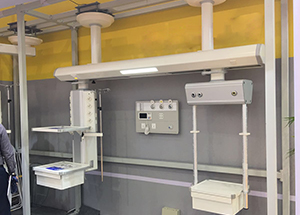

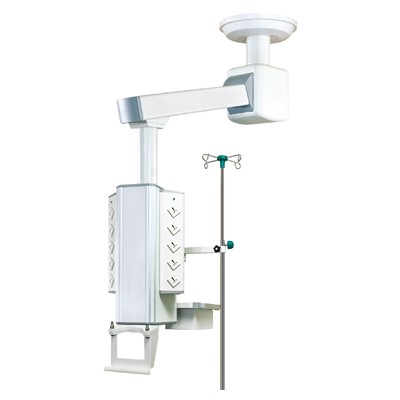

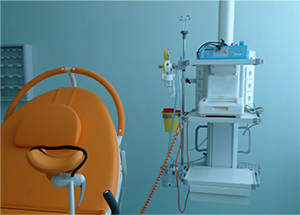

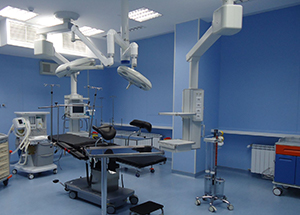

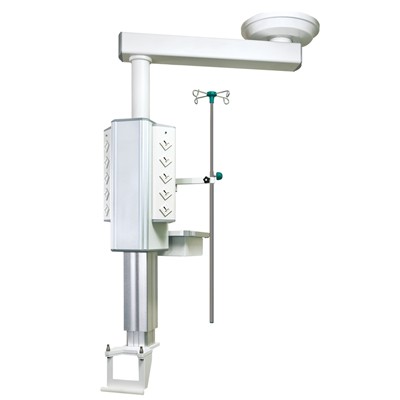

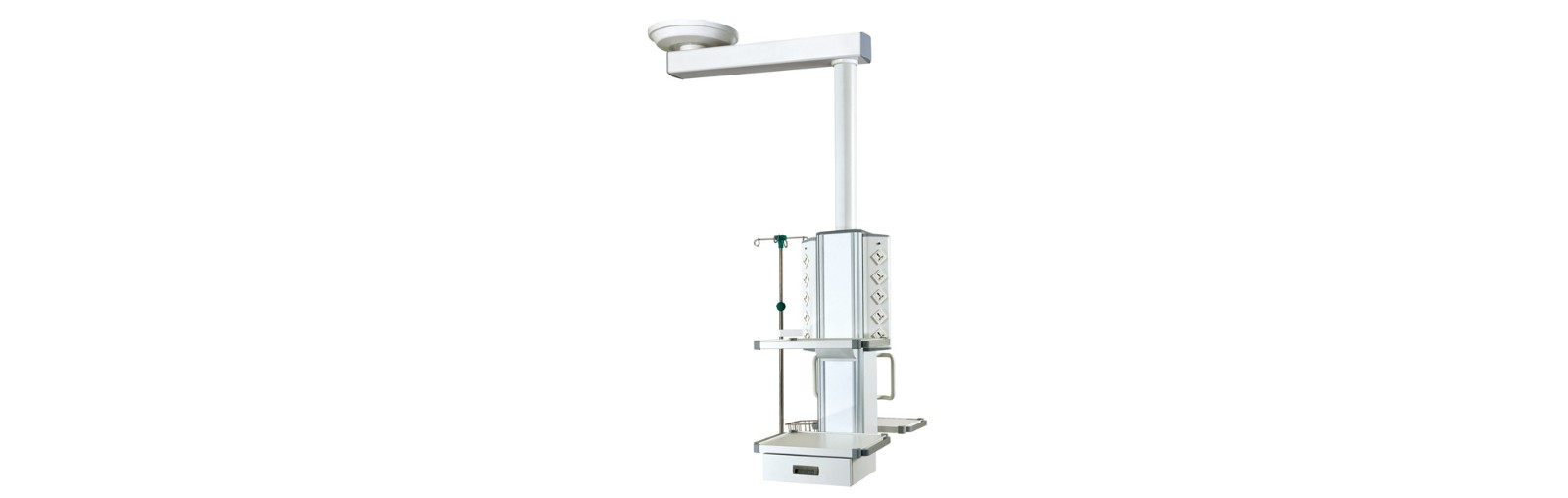

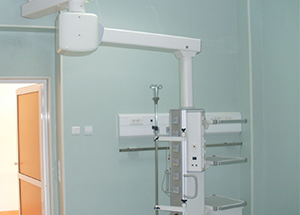

Surgical pendant as the preferred surgical anesthetic tower in the operating room, economical, there is single and double arm optional to suitable for different sizes of operating theatres and rescue room, recovery room, ICU etc., one bed tower.
It can be fitted with a large range of accessories: infusion rack, platform, metal basket, light, telephone output, medical rail, or other accessories upon needs & requirements of the workplace concerned.
Electrical Socket: 10pcs Universal 3-Pin socket
Grounding Terminal: 2pcs (With grounding cables)
Medical Shelves: 3pcs (Size: 400*450mm)
Drawer: 1pcs
IV Pole: 1pcs(Extension arm optional)
Storage Basket: 1pcs(SUS304, 146*156*246mm)
RJ15: 1pcs
RJ45: 1pcs
Gas outlets: 4pcs
Flange not included
Hand Movement Brake System(Standard)
Air Brake(Optional)
Model Number: ACF-1
Rotating Angles: 340°(Horizontal)
Length of Arm: 900mm(Standard); 600-1000mm(Optional)
Height of Pedestal: 1000mm
Electricity: 220V, 50Hz; 110V, 60Hz
Net Weight Loading: 200kg
Shelf Loading: ≤80kg
