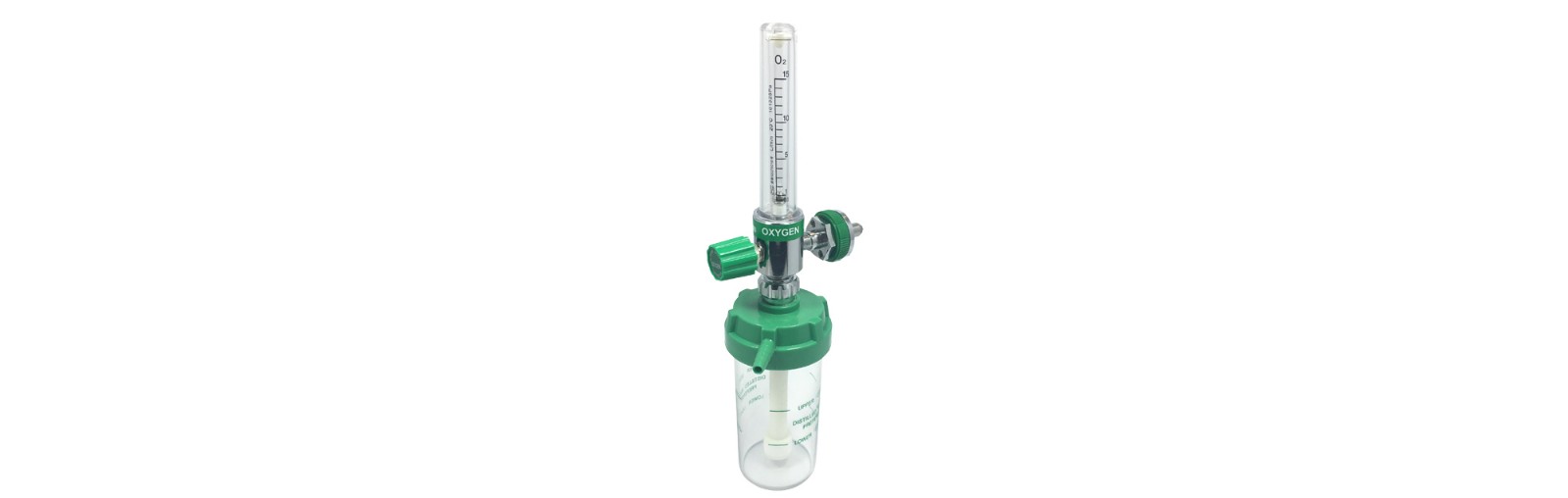

AS Series Wall Type Oxygen Inhaler

AS Series Wall Type Oxygen Inhaler

Acmd is the professional manufacturer and exporter for oxygen flowmeter, offers a complete line of Oxygen Medical Gas Flowmeters from Neonatal to Adult to meet your hospital needs, we dedicated to provide comfortable and satisfied oxygen therapy.

The flowmeter is made of brass material, CNC precision processing and anodic oxidation. High wear-resistant stainless steel switch valve core make sure accuracy control of flow rate, safety for using. High polymer and high density filter element, humidifying evenly. Providing purified oxygen and better patient feeling.

  • Features
  • Specifications
  • Gallery
  • Related Products
  • Video

Features

High Accuracy

  • Made of all brass, CNC precision processing and anodic oxidation

  • Flowmeters are all calibrated at 50 psig and 70˚ F

  • Within 10% error makes constant and stable flow

Long Life Time

  • High wear-resistant stainless steel switch valve core

  • High-quality brass, plug life 10,000 times

Better Patient Feeling

  • High polymer and high density filter element, humidifying evenly

  • Complete line of Flowmeters from Neonatal to Adult

  • Precise control of flow to make every patient more comfortable

Safe and Reliable

  • A carefully engineered needle valve assembly to insure superior flow accuracy

  • Float-ball prevent-over flow design makes safety use

High Quality

  • Flow tube and humidifier body are made of high-strength polycarbonate plastic

  • Integrated casting flowmeter, CNC precision processing

Autoclave

  • High temperature and pressure resistant sterilized humidifier body

  • European standards for B-level disinfection

  • The maximum temperature reaches 121℃ and pressure 0.142MPa

Easy to Read

  • With scale line on bottle

  • Polypropylene(PP) material, easy to see the level of liquid

High Accuracy

  • Analog: ± 3% Full-scale

  • Digital: ± 1% Full-scale

Specifications

Technical Details

  • Model Number: A-FM-AS15-OH

  • Available For ISO & USA Colors

  • Inlet adapter: optional for OH, DS, CH, BS, DIN, FS, JIS

  • Working Pressure: 65 Psi (4.5 Bar)

  • Max Inlet Pressure: 100 Psi

  • Outlet Connection: DISS1240

  • Humidifier Capacity: 200ml

Flow Rate

  • Child: 1-10 LPM

  • Adult: 1-15 LPM

Inlet Thread Size

  • 1/8 FNPT for Standard or M10*1mm

Material

  • Flow tube & Humidifier body: high-strength polycarbonate plastic

  • Body: chromed brass bodied

Accuracy of Measure

  • 10% of full scale

Color

  • Green for Oxygen USA Colors

  • White for Oxygen USA Colors

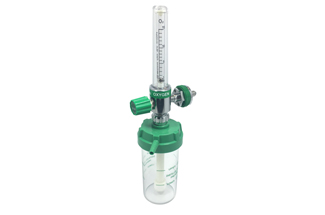

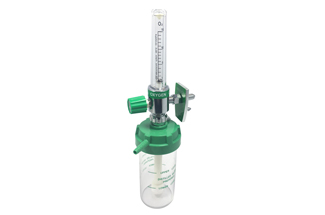

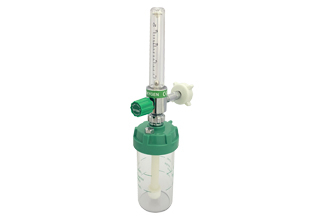

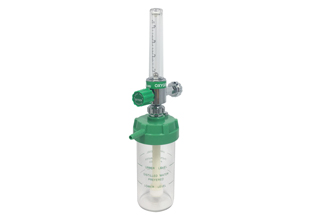

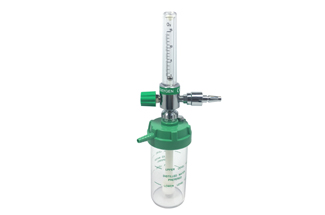

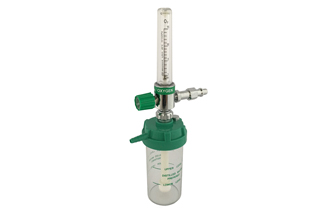

Gallery
