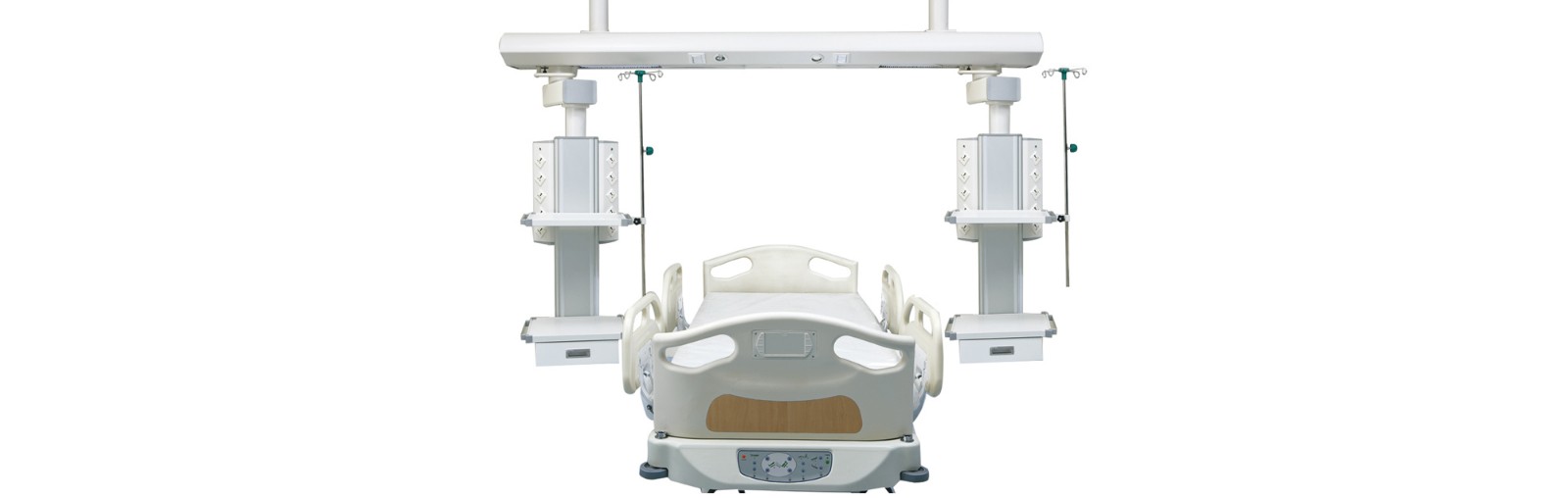

ICU Dry-wet Separation C2 Series Bridge

ICU Dry-wet Separation C2 Series Bridge

ICU Dry-wet separation C series bridge bring the gas and electricity to pedestal or function hanger, one side or two side with arm, create more rescue space. Main girder height 1950mm from the floor, easy passing through for medical care person, more humanization and beautiful.

All closed tower design, create a clean environment, reduce the incidence of cross infection, improve the cure rate.

AC-ICU-C1: Dry side equipped with movable pedestal with arm; Wet side equipped with movable pedestal with arm

  • Specifications
  • Gallery
  • Related Products
  • Video

Specifications

Main Grider

  • Length: 2400-2800mm(can customized according to request)

  • Auxiliary Lighting: 1pcs

  • Light Switch: 1pcs

  • Night Lighting: 1pcs

Dry Side

  • Pedestal with Arm: 1 set

  • Length of Pedestal: 800mm

  • Length of Arm:350mm

  • Rotating Angles: 340°

  • Movement Distance: 500mm

  • Electricity Socket: 5pcs

  • Grounding Terminal: 2pcs (With grounding cables)

  • Shelves: 2pcs

  • Drawer: 1pcs

  • RJ15: 1pcs

  • RJ45: 1pc

Wet Side

  • Pedestal with Arm: 1 set

  • Length of Pedestal: 800mm

  • Length of Arm: 350mm

  • Rotating Angles: 340°

  • Electricity Socket: 10pcs

  • Grounding Terminal: 2pcs (With grounding cables)

  • Movement Distance: 500mm

  • Shelves: 2pcs

  • Drawer: 1pcs

  • IV Pole: 1pcs(extension arm optional)

  • Storage Basket: SUS304(146*156*246mm)

  • RJ15: 1pcs

  • RJ45: 1pcs

Weight Loading Capacity

  • Wet Side Weight Loading: 150kg

  • Dry Side Weight Loading: 150kg

  • Shelf Loading: ≤80kg

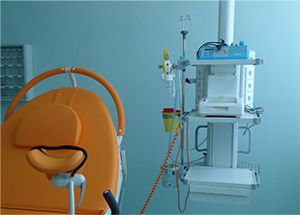

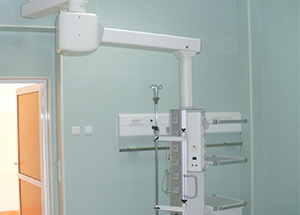

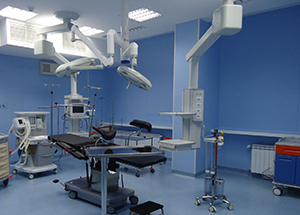

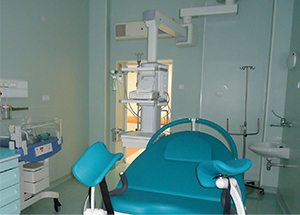

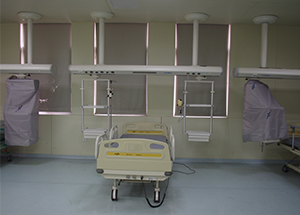

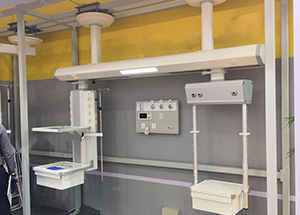

Gallery
