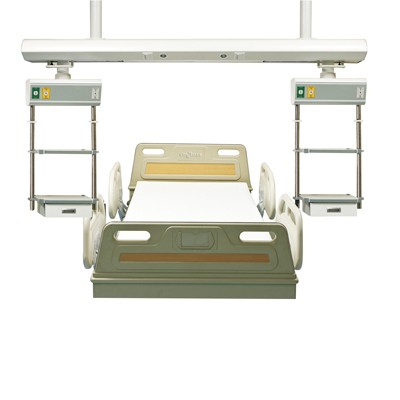

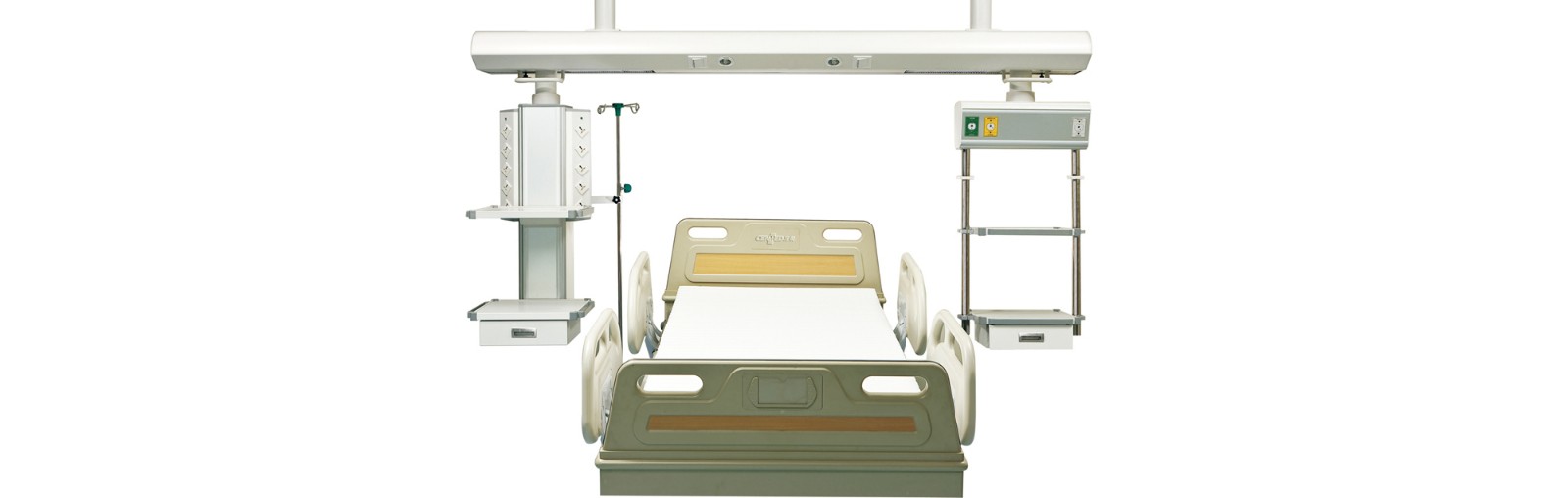

ICU Dry-wet Separation B1 Series Bridge

ICU Dry-wet Separation B1 Series Bridge

ICU Dry-wet separation B series bridge bring the gas and electricity to pedestal or function hanger, more convenient for operation. Main girder height 1900mm from the floor, easy passing through for medical care person, more humanization and beautiful.

All closed tower design, create a clean environment, reduce the incidence of cross infection, improve the cure rate.

Dry side equipped with movable Pedestal. Wet side equipped with movable Pedestal

  • Specifications
  • Gallery
  • Related Products
  • Video

Specifications

Main Grider

  • Length: 2400-2800mm(can customized according to request)

  • Auxiliary Lighting: 1pcs

  • Light Switch: 1pcs

  • Night Lighting: 1pcs

Dry Side

  • Pedestal: 1 set

  • Length: 1000mm

  • Rotating Angles: 340°

  • Movement Distance: 500mm

  • Electricity Socket: 10pcs

  • Grounding Terminal: 2pcs (With grounding cables)

  • Shelves: 2pcs

  • Drawer: 1pcs

  • RJ15: 1pcs

  • RJ45: 1pc

Wet Side

  • Pedestal: 1 set

  • Length: 1000mm

  • Rotating Angles: 340°

  • Electricity Socket: 10pcs

  • Grounding Terminal: 2pcs (With grounding cables)

  • Movement Distance: 500mm

  • Shelves: 2pcs

  • Drawer: 1pcs

  • IV Pole: 1pcs(extension arm optional)

  • Storage Basket: SUS304(146*156*246mm)

  • RJ15: 1pcs

  • RJ45: 1pcs

Weight Loading Capacity

  • Wet Side Weight Loading: 150kg

  • Dry Side Weight Loading: 150kg

  • Shelf Loading: ≤80kg

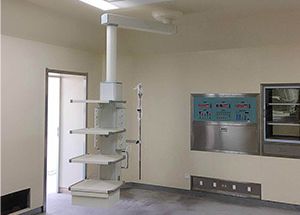

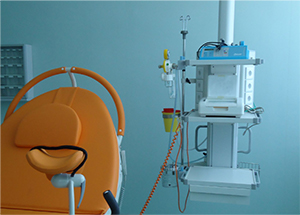

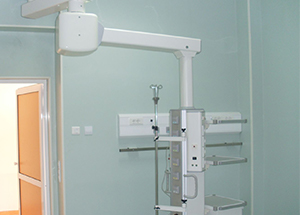

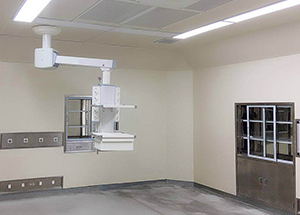

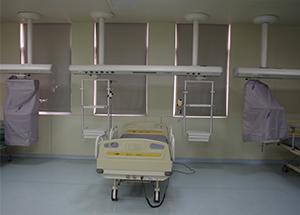

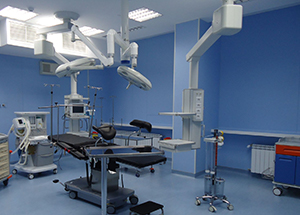

Gallery
