TD-IP300 Wireless IP Series Nurse Call System

TD-IP300 Wireless IP Series Nurse Call System

TD-IP300 is the newest generation nurse call system, used new advanced structure and integrated many extra functions to drive patient care person efficiency. Meet the requirement of modern hospitals.

The revolutionary change is for its integration with huge amounts of hospital data. The management of data is based on a web UI login, staffs can login in with their authorized account to update related data and backup it in PC/Server. It will release staff’s routine paper work and bring good experience to them.

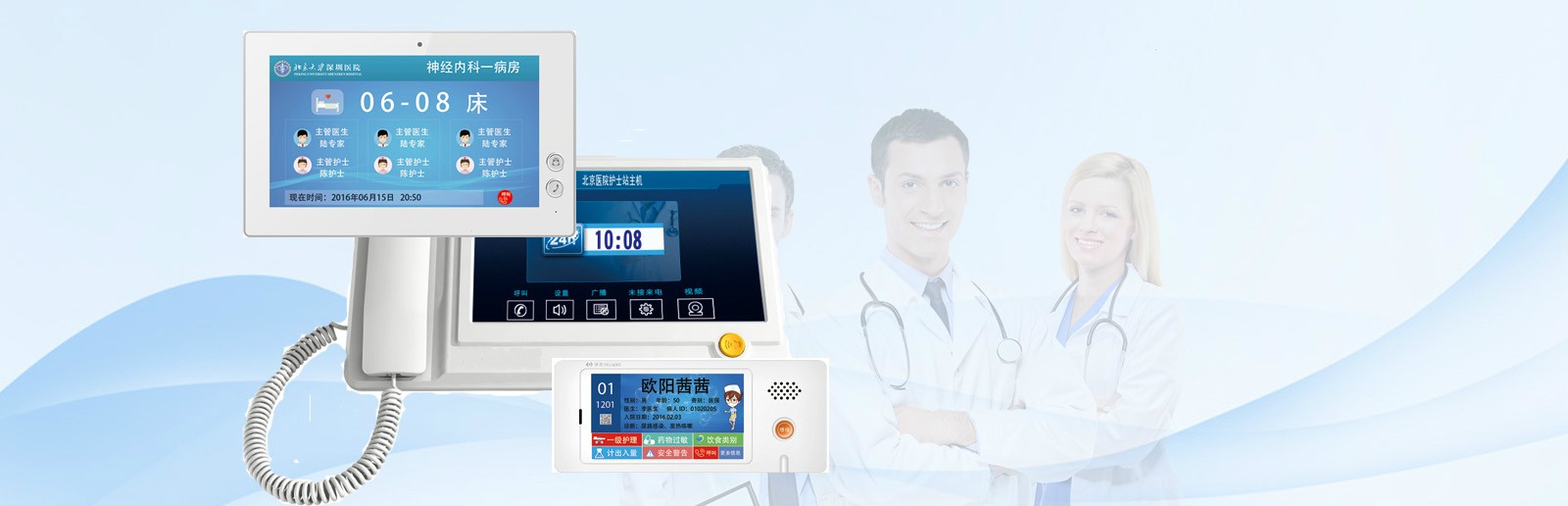

The industry’s revolutionary graphical touch screen patient station re-defines the role of audio stations by providing unparalleled ease of use and readily accessible care information – from nurse call, EMR and other IT systems. Patient/Nurse/Doctor...can find the related information they want by just a touch process.

  • Specifications
  • Features
  • Gallery
  • Related Products
  • Video

Specifications

Nurse Station Terminal

  • 10.1 inches colorful capacitive touch screen, resolution 1280*800

  • Supply Voltage: DC 24V

  • Current Consumption: 4.8W

  • Ambient Temperature: 0°C to 40°C

  • Ambient Humidity: ≤85%

  • Atmospheric Pressure: 86.0KPa~106.0 Kpa

  • Dimension: 345*208*150mm(L*W*H)

  • Installation: Placed in nurse station

Control Box

  • Supply Voltage: AC 110-240V

  • Current Consumption: 24W

  • Ambient Temperature: 0°C to 40°C

  • Ambient Humidity: ≤85%

  • Atmospheric Pressure: 86.0KPa~106.0 Kpa

  • Dimension: 240*200*70mm(L*W*H)

  • Installation: Placed in nurse station, or low voltage silo/LV silo of hospital

Room Terminal

  • 10.1 inches colorful capacitive touch screen, resolution 1280*800

  • Supply Voltage: DC 12V

  • Current Consumption: 4W

  • Ambient Temperature: 0°C to 40°C

  • Ambient Humidity: ≤85%

  • Atmospheric Pressure: 86.0KPa~106.0 Kpa

  • Dimension: 301*201*35mm(L*W*H)

  • Slot Size: 282*182*40mm

  • Installation: Build-in-wall or Mounted beside the room door

Bedhead Terminal

  • Supply Voltage: DC 12V

  • Current Consumption: 3W

  • Ambient Temperature: 0°C to 40°C

  • Ambient Humidity: ≤85%

  • Atmospheric Pressure: 86.0KPa~106.0 Kpa

  • Dimension: 212*90*9mm(L*W*H)

  • Slot Size: 206*80mm

  • Installation: Build-in-wall or build-in-bed head unit on the top of each bed

Toilet/Bathroom Terminal

  • Quiescent Current: ≤200Ua

  • Operation Circuit: ≤1Ma

  • Ambient Temperature: 0°C to 40°C

  • Ambient Humidity: ≤85%

  • Atmospheric Pressure: 86.0KPa~106.0 Kpa

  • Dimension: 82*82*19mm(L*W*H)

  • Slot Size: 54*86mm

  • Installation: Build-in-wall, Pre-embedded 86 bottom box. A suitable height in toilet or bathroom

Technical details

  • Working Pressure: 72 Psi (5 Bar)

  • Max Inlet Pressure: 100 Psi

  • Flow Rate: 1-10 LPM, 1-15 LPM, 1-30 LPM

  • Input Connection: 1/8 FNPT for Standard, M10*1mm, M12*1mm, M14*1mm, G1/4

  • Output Connection: 9/16UNF

  • Humidifier Capacity: 170ml

Nurse Presence/Assistance/Code Blue Button

  • Wired connection, the highest priority

  • Press for nurse presence, a led indicated call success

  • Quiescent Current: ≤200Ua

  • Operation Circuit: ≤1Ma

  • Ambient Temperature: 0°C to 40°C

  • Ambient Humidity: ≤85%

  • Atmospheric Pressure: 86.0KPa~106.0 Kpa

  • Dimension: 82*82*19mm(L*W*H)

  • Slot Size: 54*86mm

  • Installation: Build-in-wall, Pre-embedded 86 bottom box

  • Press for Code Blue, a led indicated call success, it will be forward to Doctor

WIFI Hotpot

  • Relaying, bridging & DHCP…wireless connection functions

  • Layout should covers all terminals (with wireless connection)

  • Wireless Transmission: ≥300M, 3DB

  • Transmission Protocol: IEEE 802.11b/g/n

  • Band: 2.4GHz

  • Transmission Distance: ≥100m(Indoor);≥300m(Outdoor)

  • Installation: 10-15m per unit, on the top Suggest

Nurse Station Terminal

  • 10.1 inches colorful capacitive touch screen, resolution 1280*800

  • Supply Voltage: DC 24V

  • Current Consumption: 4.8W

  • Ambient Temperature: 0°C to 40°C

  • Ambient Humidity: ≤85%

  • Atmospheric Pressure: 86.0KPa~106.0 Kpa

  • Dimension: 345*208*150mm(L*W*H)

  • Installation: Placed in nurse station

Control Box

  • Supply Voltage: AC 110-240V

  • Current Consumption: 24W

  • Ambient Temperature: 0°C to 40°C

  • Ambient Humidity: ≤85%

  • Atmospheric Pressure: 86.0KPa~106.0 Kpa

  • Dimension: 240*200*70mm(L*W*H)

  • Installation: Placed in nurse station, or low voltage silo/LV silo of hospital

Room Terminal

  • 10.1 inches colorful capacitive touch screen, resolution 1280*800

  • Supply Voltage: DC 12V

  • Current Consumption: 4W

  • Ambient Temperature: 0°C to 40°C

  • Ambient Humidity: ≤85%

  • Atmospheric Pressure: 86.0KPa~106.0 Kpa

  • Dimension: 301*201*35mm(L*W*H)

  • Slot Size: 282*182*40mm

  • Installation: Build-in-wall or Mounted beside the room door

Bedhead Terminal

  • Supply Voltage: DC 12V

  • Current Consumption: 3W

  • Ambient Temperature: 0°C to 40°C

  • Ambient Humidity: ≤85%

  • Atmospheric Pressure: 86.0KPa~106.0 Kpa

  • Dimension: 212*90*9mm(L*W*H)

  • Slot Size: 206*80mm

  • Installation: Build-in-wall or build-in-bed head unit on the top of each bed

Features

Nurse Station Terminal

  • 10.1 inches colorful capacitive touch screen, resolution 1280*800

  • Display calls

  • Full duplex voice communication with terminals*Receive & calls, or cancel calls*Can set different nursing levels in advance according to patient status

  • Update data by wifi connection

  • Customized MMI with hospital name and ward name

  • Display related bed number in each room

  • Display related doctor and nurse for each room

  • Nurse present notice

  • Integrated a dual-color LED on the top. (Red—calls, Green—nurse present)

Bedhead Terminal

  • 5/6 inches colorful capacitive touch screen, resolution 960*540

  • All the data display is automatically crawled by the system itself, staffs just need to touch the

    screen to select relevant bed

  • Update data by wifi connection

  • Double insurance structure(wired & wireless) to ensure that caregivers never miss a call

  • Full duplex voice communication

  • Integrated with a handset (include call and cancel button)

  • Can press handset button to call(wired), or touch the screen to call(wifi)

  • Customized MMI with multi pages: Medical Orders, Expense, Medical Report...etc. Each topic have one Page

  • A assistance button for nurse

Corridor Display Screen

  • Ultrathin LED display support 12 letters of an alphabet, or 6 Chinese characters

  • Circularly display each calls according to nursing levels

  • Display exact local times in idler time

  • Can customize rolling slogan

Door Lamp

  • A colorful room lamp which can indicate different calls

  • Red-Patient, Red Flash-Toilet/Bathroom, Green-Nurse Presence, Orange Flash-Assistance

  • Blue-Code Blue

  • From Top to Bottom is: Red, Green, Orange, Blue

Toilet/Bathroom Terminal

  • Advanced waterproof, wired connectionPress or pull for emergency call, a led indicated call success

  • Press or pull again for cancel

  • A high call level, can not be cancel by nurse

Corridor Display Screen

  • Ultrathin LED display support 12 letters of an alphabet, or 6 Chinese characters

  • Circularly display each calls according to nursing levels

  • Display exact local times in idler time

  • Can customize rolling slogan

Door Lamp

  • A colorful room lamp which can indicate different calls

  • Red-Patient, Red Flash-Toilet/Bathroom, Green-Nurse Presence, Orange Flash-Assistance, Blue-Code Blue

  • From Top to Bottom is: Red, Green, Orange, Blue


High Quality

  • High-quality aluminum magnesium alloy, plug life 10,000 times.

  • High wear-resistant stainless steel switch valve core

  • Durable polycarbonate hood and metering tube.

  • High temperature and pressure resistant sterilized humidifier body

  • High polymer and high density filter element, humidifying evenly.

Beautiful Appearance

  • Made of aluminum alloy

  • CNC precision processing and anodic oxidation

High Accuracy

  • Analog: ± 3% Full-scale

  • Digital: ± 1% Full-scale
