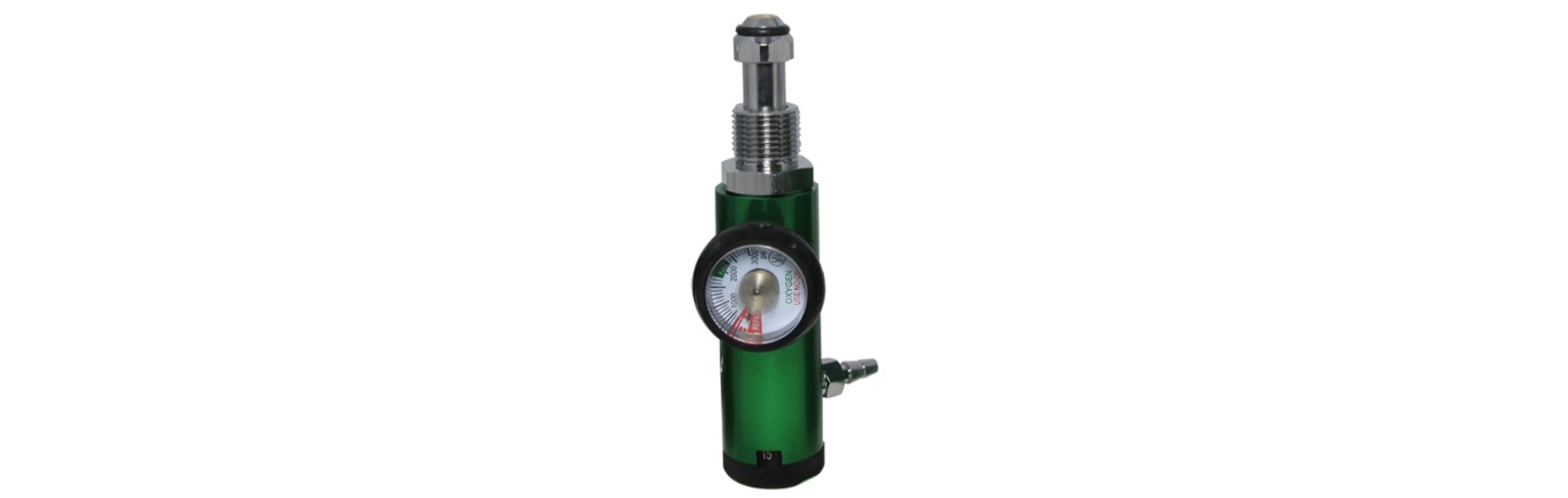

Bull Nose Oxygen Regulator

Bull Nose Oxygen Regulator

Acmd is the professional manufacturer and exporter for oxygen flowmeter, offers a complete line of Oxygen Medical Gas Flowmeters from Neonatal to Adult to meet your hospital needs, we dedicated to provide comfortable and satisfied oxygen therapy.

The flowmeter is made of brass material, CNC precision processing and anodic oxidation. High wear-resistant stainless steel switch valve core make sure accuracy control of flow rate, safety for using. High polymer and high density filter element, humidifying evenly. Providing purified oxygen and better patient feeling.

  • Features
  • Specifications
  • Gallery
  • Related Products
  • Video

Features

High Accuracy

  • Aluminum body with brass hight pressure chamber

  • 1-1/2'' diameter UL-listed gauge

  • Complies to CGA standards

Long Life Time

  • High wear-resistant stainless steel switch valve core

  • High-quality brass, plug life 10,000 times

Better Patient Feeling

  • High polymer and high density filter element, humidifying evenly

  • Complete line of Flowmeters from Neonatal to Adult

  • Precise control of flow to make every patient more comfortable

Safe and Reliable

  • Sintered bronze inlet filter for longer service life

  • Easy to read flow rate window

High Quality

  • Hose barb outlet and DISS outlet

  • Pistion design regulator

Autoclave

  • High temperature and pressure resistant sterilized humidifier body

  • European standards for B-level disinfection

  • The maximum temperature reaches 121℃ and pressure 0.142MPa

Easy to Read

  • Easy to read flow rate window

  • Available in 4,10 and 15 LPM

Warranty

  • 3 years

Specifications

Technical Details

  • Model Number: A-COR15-BN

  • Available For ISO & USA Colors

  • Complies to CGA standards

  • Output Pressure : 50 psi fixed

  • Max Inlet Pressure: 4500PSI

  • Hose barb outlet and DISS outlet

  • Selectflow regulator with 4,10 and 15 LPM flow settings

Flow Rate

  • Flow Rate :0-4LPM,0-10LPM,0-15LPM

  • Dual Scale Pressure Gauge :PSI and KPA

Inlet Thread Size

  • 1/8 FNPT for Standard or M10*1mm

Material

  • Brass Body Regulator and Flow Meter

  • Sintered bronze inlet filter for longer service life

Pressure

  • Output Pressure : 50 psi fixed

  • Maximum Inlet Pressure :4500PSI

Color

  • Green for Oxygen USA Colors
