ACMD medical gas manifold is an essential piece of medical equipmentare used to supply an uninterrupted flow of medical gas to a medical facility pipeline system, delivering compressed gas (oxygen, medical air, carbon dioxide, or nitrogen) to power many medical systems and operations.

The gas inlet port is connected to a medical gas source such as oxygen cylinder or compressed air, which is piped into the manifold. The main structure is responsible for distributing the gas to each branch outlet and controlling the flow and pressure of the gas. At the same time, the main structure can also be equipped with auxiliary equipment such as pressure gauges and flow meters to monitor and adjust the flow and pressure of gases.

1. ACMD medical gas manifold has the following features：

• Open design manifolds are available with both manual and automatic power sources

• The gas types are oxygen, medical air, carbon dioxide, or nitrogen etc.

• Use 155M-A super high flow pressure reducer

• The input pressure is 15MPa and the output pressure is 0.07MPa to 1.4MPa.

• All copper material

• Piping joints with silver brazing , maximum leak prevention

• Whole system has been high cylinder pressure tested, safety and reliable

• Wall or floor mount installation available

2. Two ACMD Hot Selling Medical Oxygen Manifolds

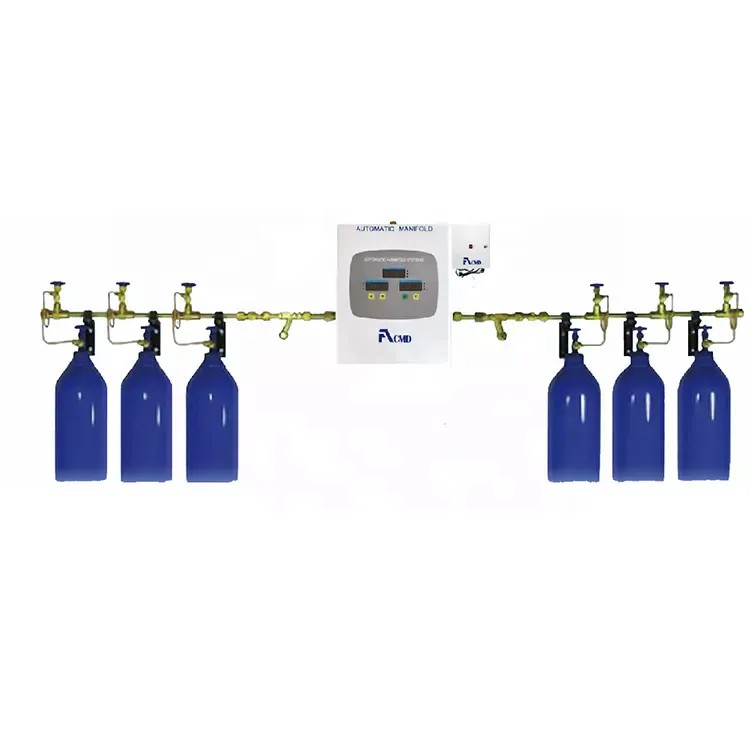

• Automatic medical oxygen manifold

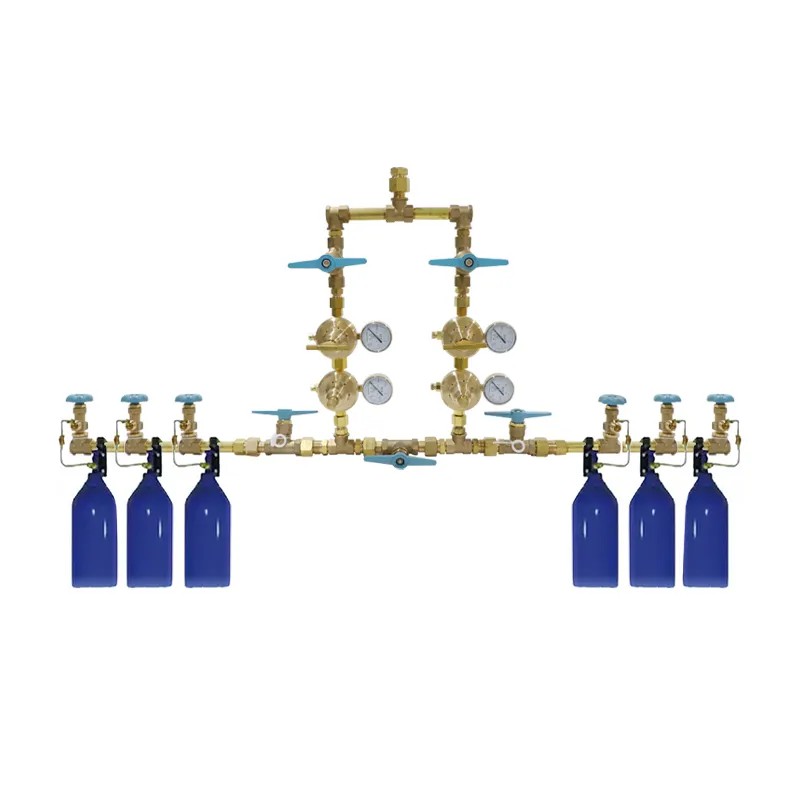

• Manual medical oxygen manifold
