Oxygen Therapy Necessary Instrument - Oxygen Regulator

Views: 0 Author: Site Editor Publish Time: 2023-03-31 Origin: Site

The COVID-19 is one of the most concerned viruses in the world at present, because the virus is easy to cause damage to the lungs and respiratory system. In turn, it affects the patient's respiratory function, resulting in insufficient oxygen. At this time, oxygen therapy has become an important means of treating patients.


By sending high concentrations of oxygen to the patient's respiratory system, it increases the patient's blood oxygen level. The Oxygen regulator is an essential equipment for oxygen therapy.

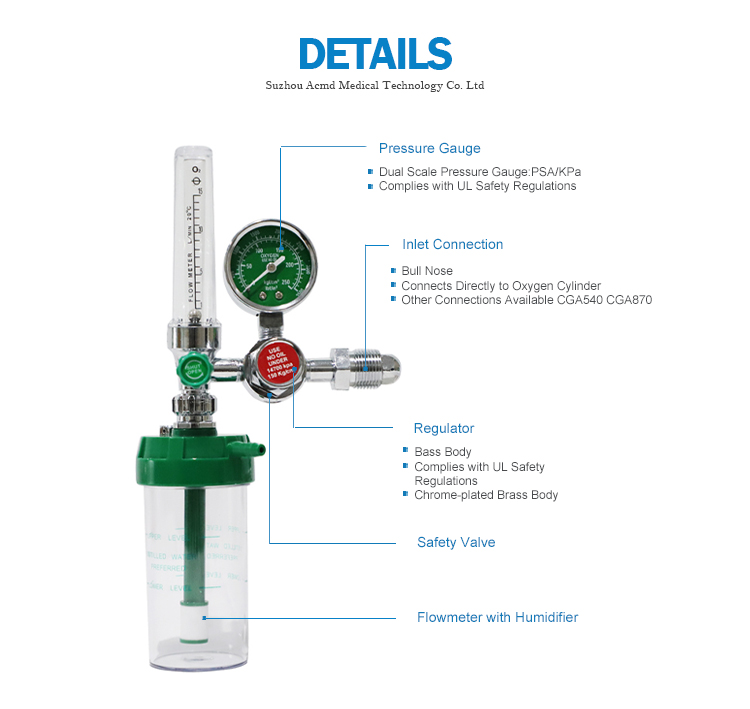

ACMD oxygen regulator is a device for controlling the flow of oxygen, as shown in the diagram below:





The other two accessories, flow meter and humidifier bottle.

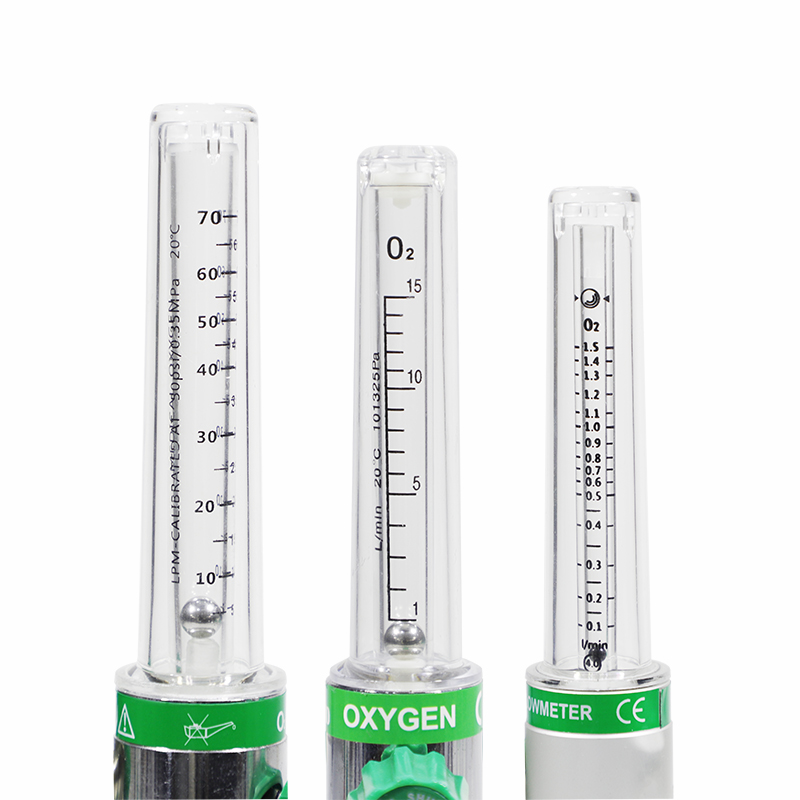

1. Oxygen Flow Meter

_MG_1162 拷贝.jpg


ACMD oxygen regulator's flow meter is used to measure the flow of oxygen, with a visible stainless stell ball float to indicate the flow. Both the outer and inner tubes of the slim body flowmeter are constructed of polycarbonate for maximum durability and service life. CE certified measurement accuracy up to 10% of full scale. The supported connected adapter are OH, DS, CH, BS, DIN, FS, JIS. The flow range has an optional range from 0-1.5LPM to 0-80LPM, and newborns, minors, adults, and patients with new crowns can choose the appropriate range.

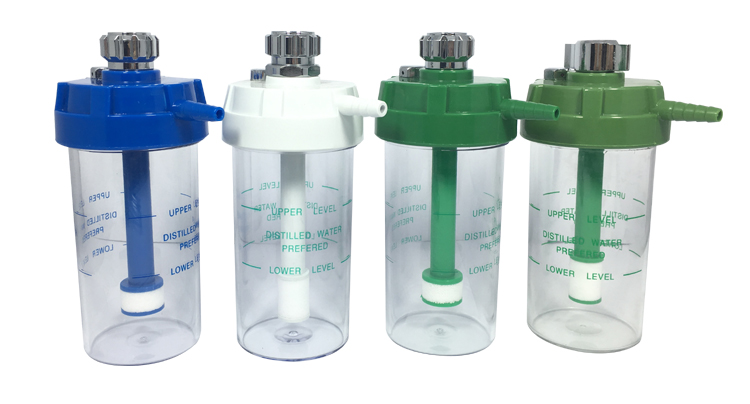

2. Oxygen Humidifier Bottles

Bubble Humidifier-1.jpg


ACMD offers reusable and disposable humidification bottles.


  • Reusable Humidifier

Polycarbonate bottles are impact resistant for maximum durability and service life, and is autoclavable to 121°C during disinfecting procedures. DISS 1240 inlet connection.


  • Disposable Humidifier

DISS 1240 inlet connection. Capacity 150ml, 300ml, 350ml, 500ml.
