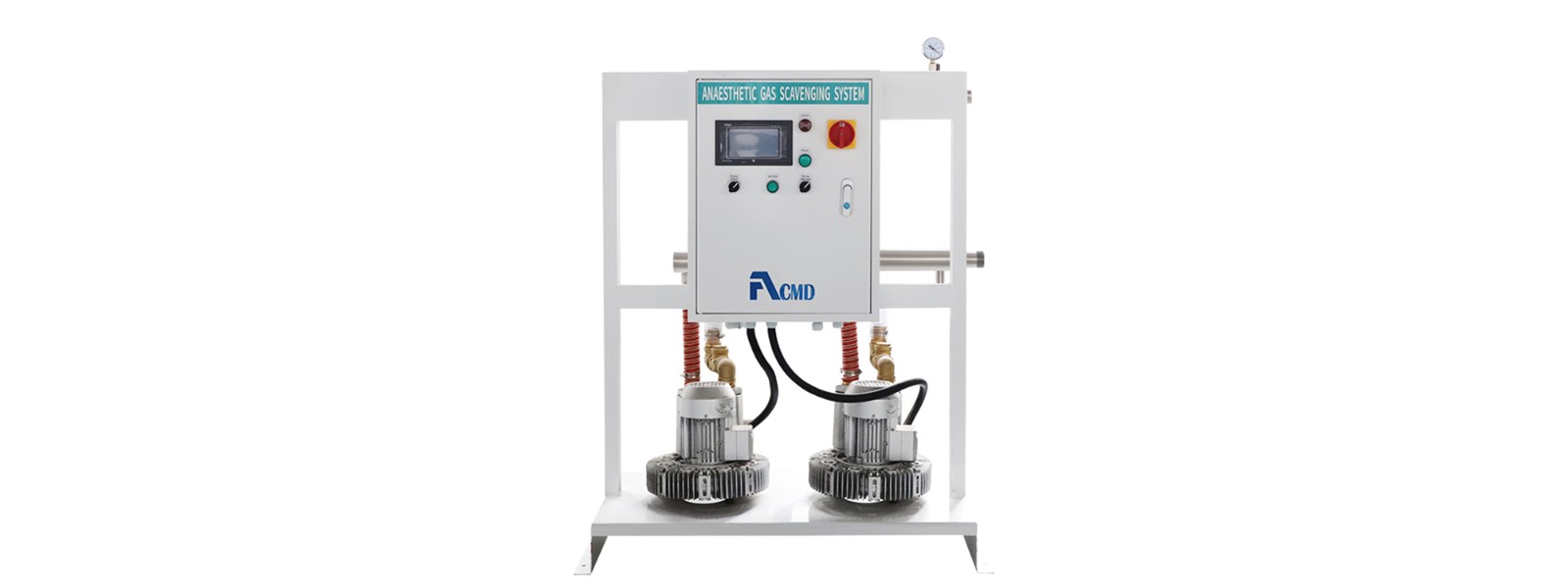

Anesthetic Gas Scavenging System

Anesthetic Gas Scavenging System

The anaesthetic gas scavenging system(AGSS) shall be a dedicated, specifically designed active extraction and disposal system for waste anaesthetic gas, It shall provide a maximum flow rate of 120m3/h. It's an active system which removes anaesthetic gas any other areas fitted with nitrous mixtures from operating rooms and any other areas fitted with nitrous oxide terminal units.

  • Specifications
  • Gallery
  • Related Products
  • Video

Specifications

Standard Configuration List

  • Electrical control cabinet

  • Vacuum solenoid valves

  • Stainless steel pipe fittings

  • Check valves

  • Negative pressure switches( one ready )

  • Pressure gauges

  • Vacuum tank

  • Steriles filters

Pump Type

  • Oil-lubricated Rotary Vane Vacuum Pump

Features

  • Each pump has its own controller, ensure there is no service interruption

  • Each pump has inlet filter, unloading valve, check valve and temperature sensor

  • Automatic operation through pressure sensor control, reverse protection

  • Automatic recovery if power outage

  • Flexible connection between suction and exhaust outlets, prevent breaking from vibration

  • Display information including: Alarm information, maintenance plan, running time, working pressure, working status, opration button, current, trend chart, datebase

  • Data and information can be displayed to the workstation remote computre.

Electricity Elements

  • Touch Screen: 7 inch colorful screen

  • PLC Control: Brand Mitsubishi

  • Electrical element: Brand Schneider

acmd vacuum pump.png

Gallery

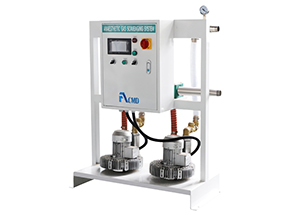

IMG_4203 拷贝.jpg

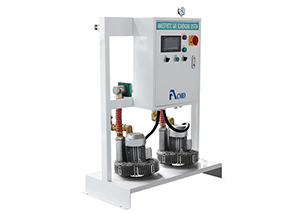

IMG_4204 拷贝.jpg

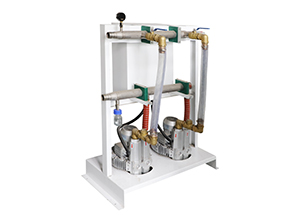

IMG_4213 拷贝.jpg
IMG_4256 拷贝.jpg
空气-右侧 (3) 拷贝.jpg

Video
